Victron Energy Inverter

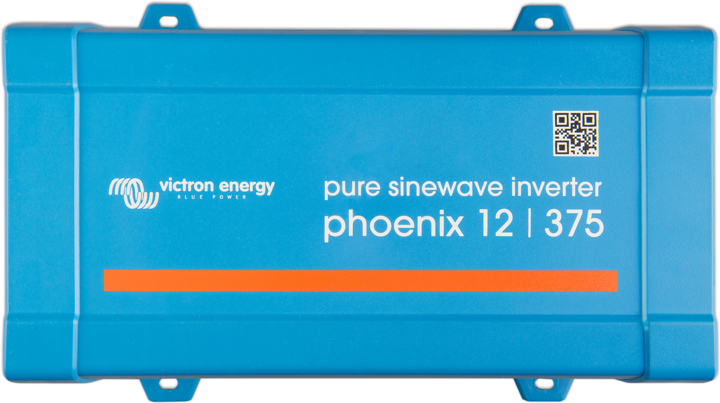

The Victron Phoenix 12/375VE.Direct is a small sine wave inverter with 300 W continuous power. It can deliver up to 700 W for short periods to provide high inrush currents for LED lighting, electrical appliances, or motors. The Phoenix 12/375VE.Direct is suitable for connection to 12 V DC batteries and converts them into a pure 230 V sine wave AC voltage. With an efficiency of 90%, it is one of the best devices in its class.

Via the VE.Direct connection, the device can be connected to a computer or smartphone, allowing various parameters to be configured. The inverter is ready to operate with factory settings and can be configured using a computer (VE.Direct to USB interface cable required), Apple and Android smartphones, tablets, or other devices (VE.Direct Bluetooth Smart Dongle required). Configurable parameters include the output AC voltage and frequency, alarm threshold, low battery shutdown voltage, and voltage for detecting "battery charged" status. Additionally, settings for stopping ECO mode and starting power can be adjusted.

In ECO mode, set the front switch to reduce power consumption when unloaded. The inverter will automatically switch off when it detects no loads are connected and will turn on briefly every 2.5 seconds to check for a load. If the output power exceeds the set limit, the inverter resumes operation. These parameters can also be configured.

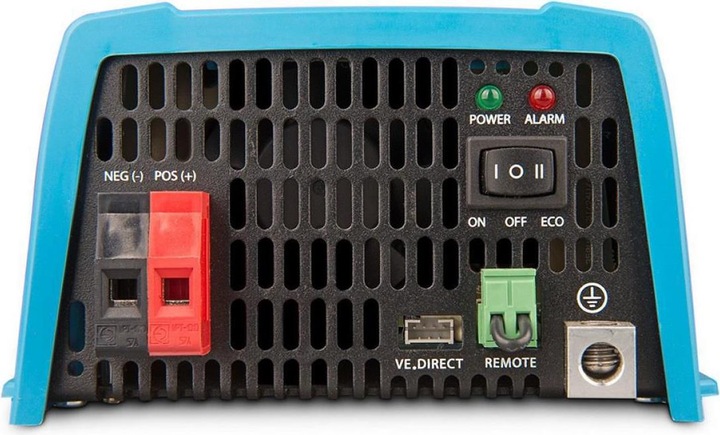

A remote controlled on/off switch can be connected to the two-pole connector, or the left contact of the plug can be changed to the positive pole of the battery, which is useful in automotive applications. Wire it to the ignition contact.
