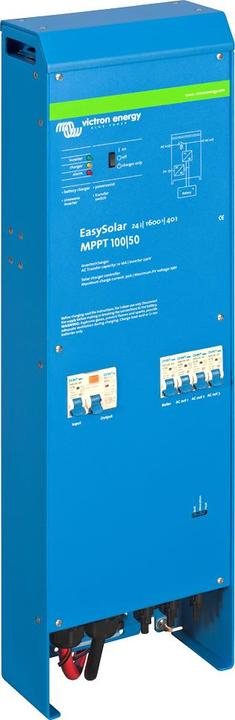

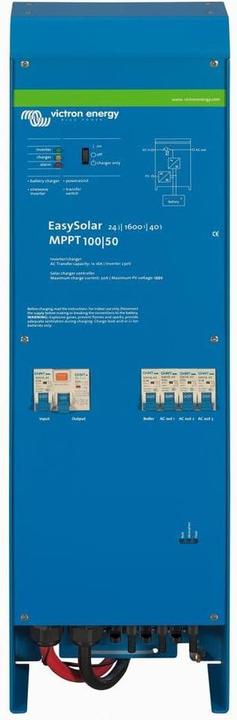

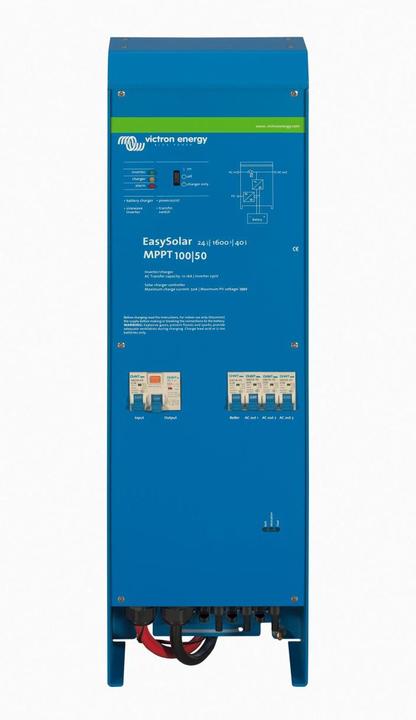

Victron Energy EasySolar 24/1600/40-16 MPPT 100/50

EasySolar

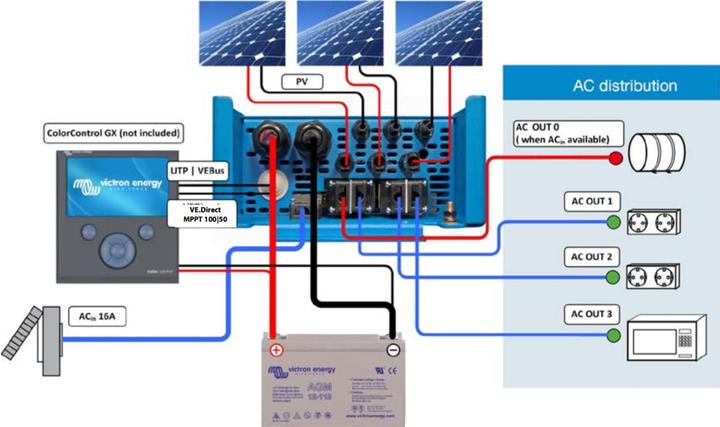

Complete solution for solar power. The EasySolar combines an MPPT solar charge controller, an inverter/charger, and an AC distribution system in a single device. The installation of the device is straightforward and requires minimal wiring.

Models: 1600VA, 3000VA, 5000VA

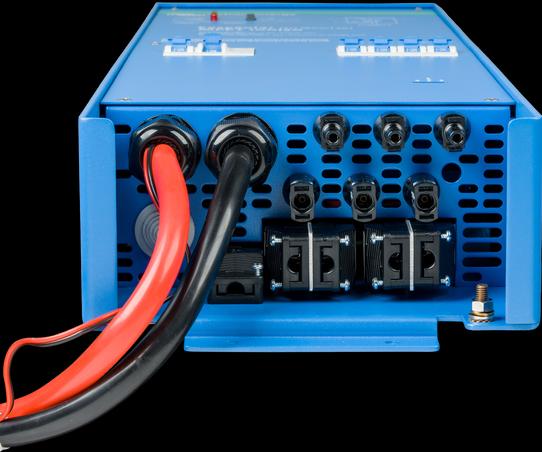

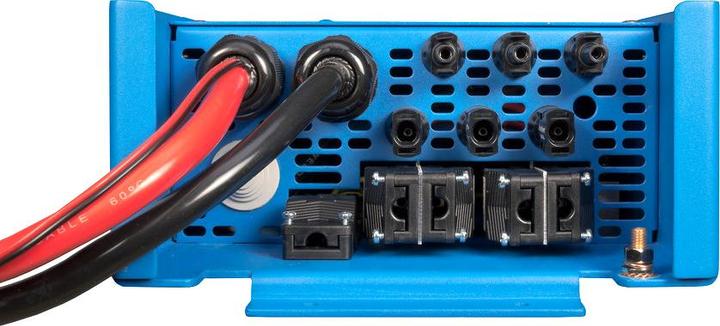

The solar charge controller: SmartSolar MPPT 100/50. Up to three PV panel strings can be connected with three sets of MC4 PV connectors.

The inverter/charger MultiPlus Compact 12/1600/70 or 24/1600/40. The MPPT charge controller and the MultiPlus Compact inverter/charger use the same DC battery cables (included). The batteries can be charged with solar power (SmartSolar MPPT) and/or with AC power (inverter/charger) from the grid or a generator.

AC distribution. The AC distribution consists of a residual current circuit breaker (30 mA/16 A) and four AC outputs, protected by two 10 A and two 16 A fuses. One 16 A output is controlled by the AC input: it only activates when AC power is available.

PowerAssist. The unique PowerAssist technology prevents overloading of the grid or generator power supply by ensuring that additional power is supplied through the inverter to the outputs whenever necessary.

Unique software for solar systems. Several software programs (assistants) are available to configure the system for various grid-connected or standalone applications.
