Name: BlueSolar MPPT 100/30
Brand: Victron Energy
SKU: 21501606
Price: 103 CHF
Availability: InStock
Rating: 5 (3 reviews)

productDetailPageQuery

Victron Energy

The Victron MPPT 100/30 is part of the large family of BlueSolar MPPT charge controllers and, like its larger siblings, offers ultra-fast power tracking, which can increase the yield of your solar system. In addition to the greater charging and PV power, this Blue model differs even more from the lower models. The 100/30 controller has the ability to fully program and store various charging algorithms. The custom-created algorithms can then be directly selected via a switch knob on the housing. The load output directly on the controller is no longer present from this model onwards.

Compared to the smaller models in the BlueSolar MPPT series, the 100/30 offers overheating protection with a shutdown function and automatic restart once a normal operating temperature is reached. The high-speed MPP tracker of the latest generation significantly improves energy yield, especially in overcast conditions where light intensity constantly changes, by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Additionally, the 100/30 features several other innovative technologies, such as the VE.Direct communication port.

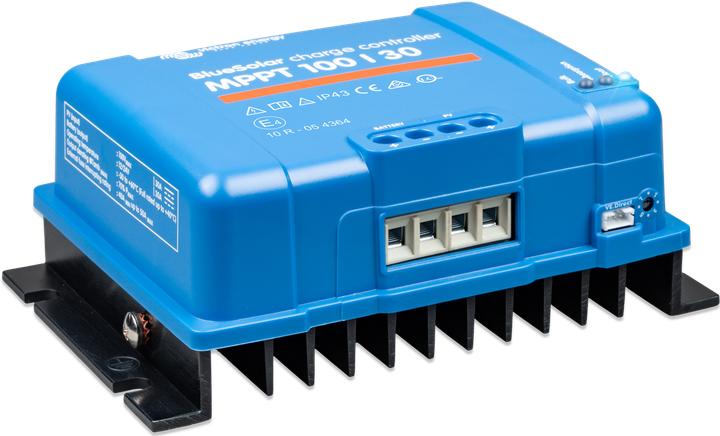

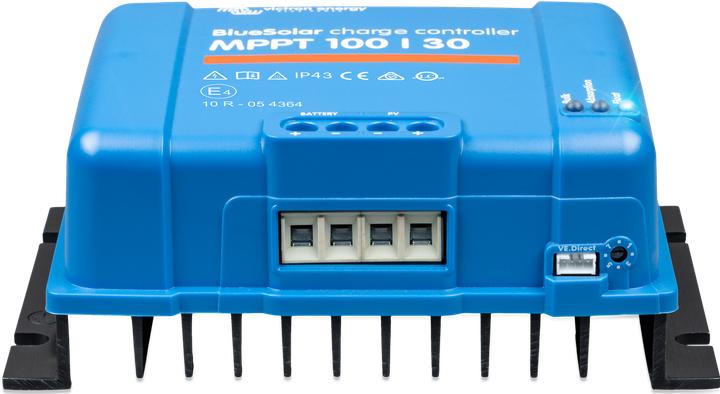

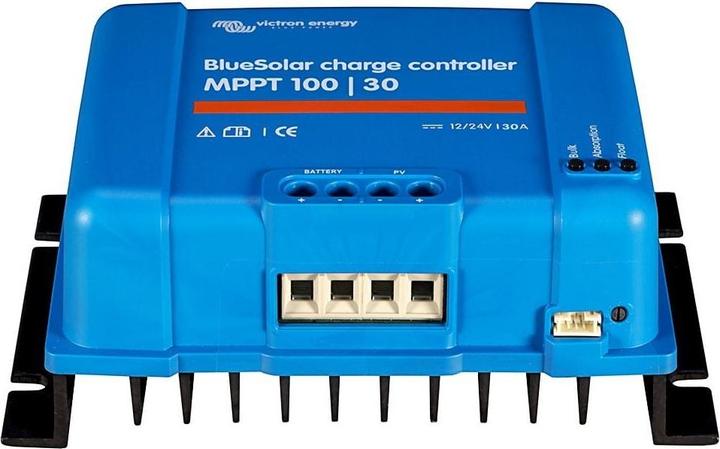

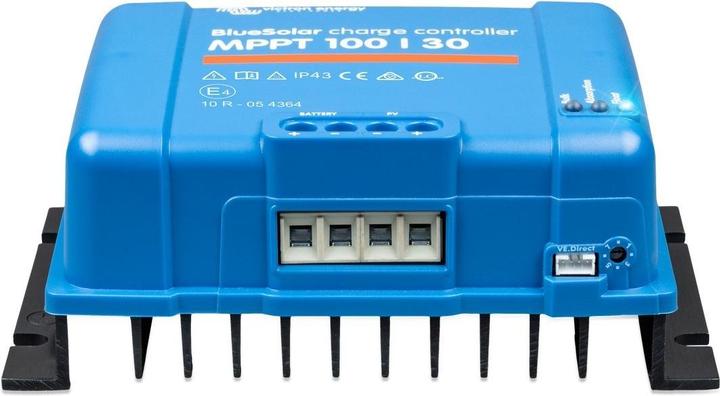

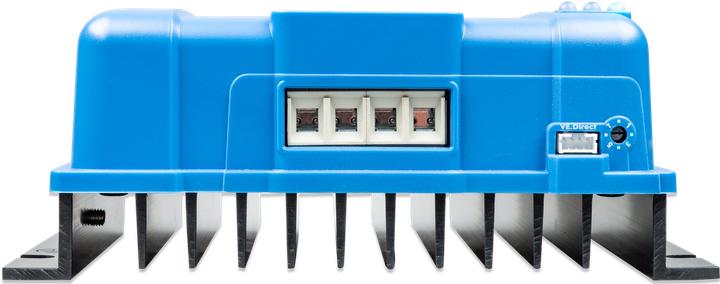

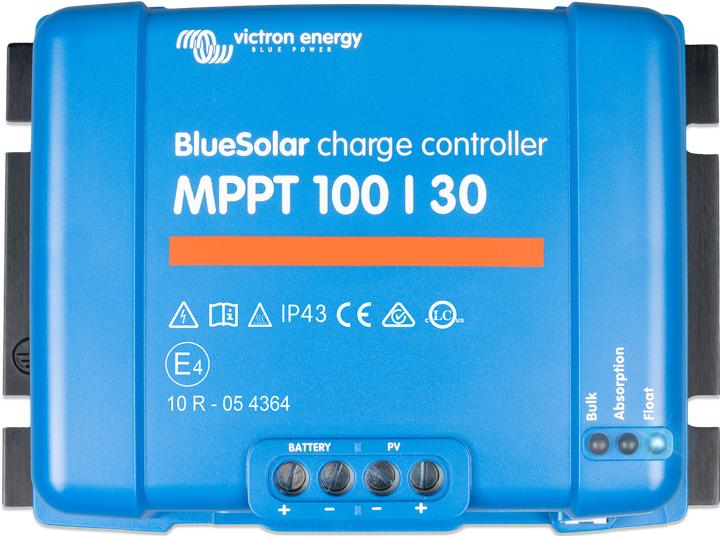

Actual product image Victron Energy BlueSolar MPPT 100/30

Key specifications

Nominal current

Safety function

BlueSolar MPPT 100/30

Charge controller

30-day right of return

General information

Colour

Charge controller properties

Voluntary climate contribution

Scope of delivery

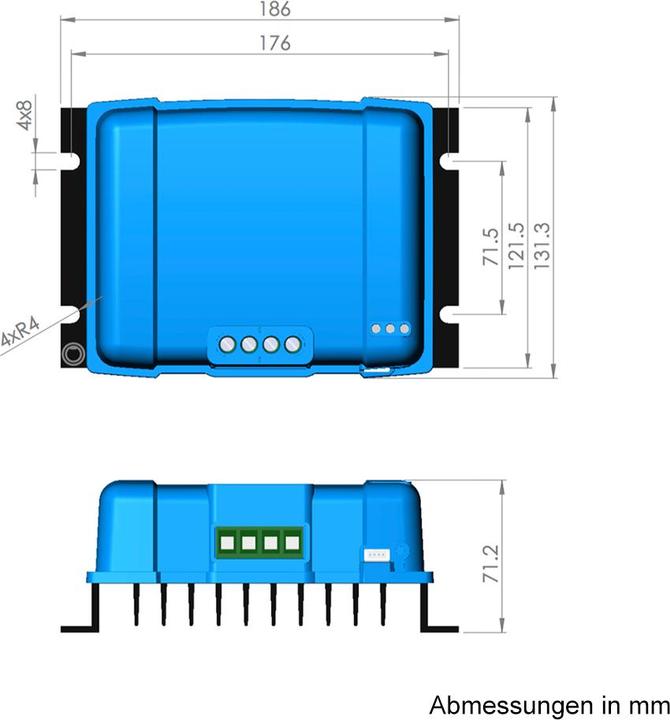

Product dimensions

Package dimensions

The fast MPPT algorithm boosts energy yield by up to 30% compared to conventional PWM controllers under changing light conditions.

High-Efficiency MPPT Charging Technology

The device features overheating protection with a switch-off function and automatic restart once normal operating temperature is reached.

Integrated Overheating Protection

The charging algorithm is fully customisable and also includes eight pre-defined settings selectable via rotary knob.
