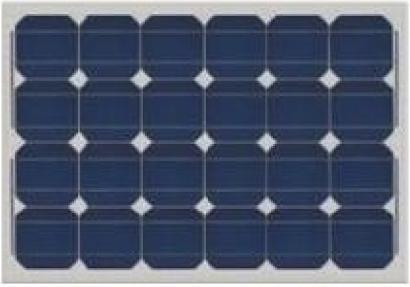

Victron Energy BlueSolar
55 W, 4 kg7 items in stock at supplier
Performance
Product details
Low temperature-voltage coefficient ensures high efficiency even at high temperatures. Exceptional performance even in low light conditions and high light sensitivity through the entire solar spectrum. 25-year limited warranty on power output and performance. 5-year limited warranty on materials and workmanship. Sealed, waterproof, multifunctional distribution box provides a high level of safety. High performance bypass diodes minimise current drop caused by shading. Advanced EVA (ethylene vinyl acetate) encapsulation system with triple-layer backsheet meets the most stringent safety regulations for high-voltage operation. A sturdy anodised aluminium frame makes the modules easy to mount on the roof using a range of standard mounting systems. The highest quality, high transmittance Sekurit glass provides enhanced strength and impact resistance. Pre-wired quick connection system with PV-ST01 connectors.
Length | 54.50 cm |
Width | 66.80 cm |
Cell type | Monocrystalline |
Nominal power | 55 W |
Solar panel type | Solar panel |
Item number | 11787626 |
Manufacturer | Victron Energy |
Category | Solar panels |
Manufacturer no. | SPM040551200 |
Release date | 23.8.2019 |
External links |
Colour | Black |
Exact colour description | Black |
Frame colour | Silver |
Material group | Metal |
Material | Aluminium |
Solar panel type | Solar panel |
Cell type | Monocrystalline |
Solar panel design | Permanently installed, Rigid |
Nominal power | 55 W |
Voltage (MPP) | 18.80 V |
Rated current (MPP) | 2.94 A |
Short circuit current | 3.22 A |
Open circuit voltage (UMPP) | 22.90 V |
Number of cells | 36 x |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 54.50 cm |
Width | 66.80 cm |
Height | 2.50 cm |
Weight | 4 kg |
Length | 68 cm |
Width | 56 cm |
Height | 3.20 cm |
Weight | 4.12 kg |
