Turck Food & Beverage hygienic PVC connecting cable PKGH4M-5-PSGH4M/TFE

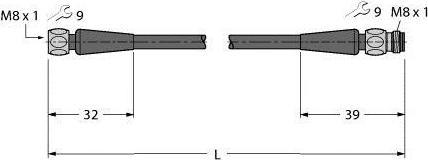

Turck connecting cable PKGH4M-5-PSGH4M/TFE Manufacturer :Turck Designation :Connecting cable PVC Type :PKGH4M-5-PSGH4M/TFE Number of poles :4 Type of electrical connection, field side :M8 Type of plug contact, field side :Male Arrangement of cable feed, field side :Straight Type of electrical connection, housing side :M8 Type of plug contact, housing side :female Cable feed arrangement, housing side :straight Cable length :5 m Cable sheath material :polyvinyl chloride (PVC) Cable sheath colour :grey With LED indicator :no Shielded :no Cable type :multi-core Contact body material :CuZn Contact coating material :gold Perm. Permissible external cable temperature after installation without vibration :-25..80 °C Permissible external cable temperature during installation/handling :0...80 °C Rated current In :4 A Rated voltage :30 V Turck connecting cable PKGH4M-5-PSGH4M/TFE: more details Food & Beverage hygienic / PVC, connecting cable, M8 coupling, straight, 4-pin, union nut/screw in stainless steel, sheath material: PVC, Sheath colour: grey RAL 7040, Acid and alkali resistant, Oil and chemical resistant, Flame retardant in accordance with DIN EN 60332 1-2, DIN EN 60332 2-2, VDE 0482 332-1-2, VDE 0482 332-2-2, Approvals: Gost, Ecolab, RoHS and REACH compliant, protection class IP67, IP69K, cable length 5 m, M8 plug, straight, 4-pin , EAN: 4047101387124.
