Turck Actuator and sensor cable PP-EPDM connecting cable

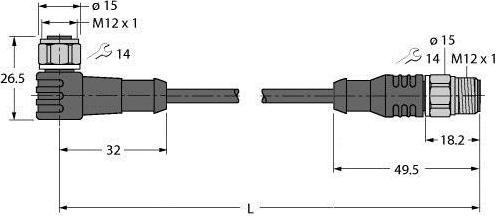

Turck connection cable WKCV4T-10-RSCV4T/TFW Manufacturer :Turck Designation :Connection cable Type :WKCV4T-10-RSCV4T/TFW Number of poles :3 Type of electrical connection, field side :M12 Type of plug contact, field side :Male Arrangement of cable entry, field side :Straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :angled Cable length :10 m Material of cable sheath :other Colour of cable sheath :white With LED indicator :no Shielded :no Cable type :multi-core Material of contact base :CuZn Material of contact coating :gold Perm. Permissible external cable temperature after installation without vibration :-40..105 °C Permissible external cable temperature during installation/handling :0...80 °C Rated current In :4 A Rated voltage :250 V Turck connecting cable WKCV4T-10-RSCV4T/TFW: further details Actuator and sensor cable / PP-EPDM, connecting cable, M12 coupling, angled, 3-pin, union nut/screw in stainless steel, sheath material: PP-EPDM, sheath colour: White, Resistant to acids and alkalis, Resistant to cleaning agents and disinfectants, Hydrolysis-resistant in accordance with DIN EN 60068-2-78, Silicone- and PVC-free, Halogen-free in accordance with DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, protection class IP67, IP69K, cable length 10 m, M12 plug, straight, 3-pin , EAN: 4047101344899.
