Turck Actuator-

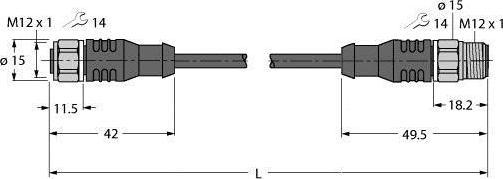

Turck actuator and sensor cable RKCV4T-2-RSCV4T/TFW Manufacturer :Turck Designation :Actuator- u. Sensor cable PP-EPDM Type :RKCV4T-2-RSCV4T/TFW Number of poles :3 Type of electrical connection, field side :M12 Type of plug contact, field side :Male Arrangement of cable entry, field side :Straight Type of electrical connection, housing side :M12 Type of plug contact, housing side :female Cable feed arrangement, housing side :straight Cable length :2 m Cable sheath material :other Cable sheath colour :white With LED indicator :no Shielded :no Cable type :multi-core Contact body material :CuZn Contact coating material :gold Perm. Perm. external cable temperature after installation without vibration :-40..105 °C Perm. external cable temperature during installation/handling :0..80 °C Rated current In :4 A Rated voltage :250 V Turck actuator and sensor cable RKCV4T Sensor cable RKCV4T-2-RSCV4T/TFW: more details Actuator and sensor cable / PP-EPDM, connecting cable, M12 coupling, straight, 3-pin, union nut/screw in stainless steel, sheath material: PP-EPDM, sheath colour: White, Resistant to acids and alkalis, Resistant to cleaning agents and disinfectants, Hydrolysis-resistant in accordance with DIN EN 60068-2-78, Silicone- and PVC-free, Halogen-free in accordance with DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, protection class IP67, IP69K, cable length 2 m, M12 plug, straight, 3-pin , EAN: 4047101345131.
