TinyCircuits TinyShield Proto Board 3 2.54mm/0.1"

Ratings
BrandMore from TinyCircuits
Currently out of stock
Free shipping starting at 50.–

Product details

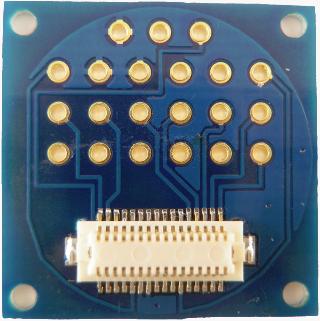

This protocol board brings many of the TinyShield signals to a point where you can solder them. All signals are labeled and have a spacing of 0.1 inches (the same spacing as on the standard Arduino Uno), allowing for the use of a standard 0.1 header. Be sure to check the specifications to ensure that this board has the TinyShield signals you need. Also, check Proto Board 2 to see if the signals it provides match those required for your project. If you need every TinyShield signal on a board (even with a smaller spacing), refer to the specifications of Proto Board 1.

  • Ultra-compact size and weight (smaller than a US quarter!)
  • Square version: 20 mm x 20 mm
  • Round version: 20 mm diameter
  • Maximum height (from the bottom TinyShield connector to the top PCB): 2.81 mm
  • Weight: TBD grams

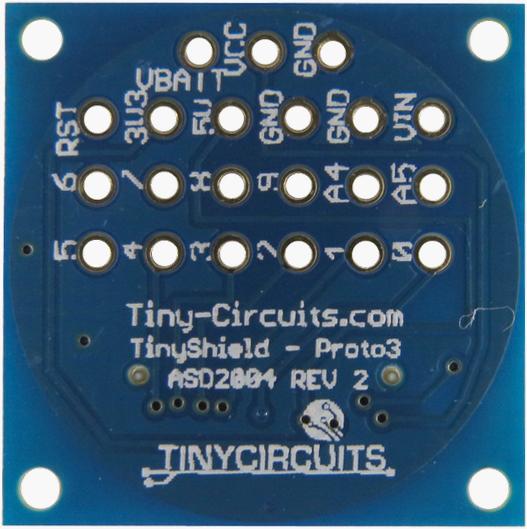

Includes the following signals:

  • VCC
  • VBATT
  • +3V3
  • +5V
  • VIN
  • GND
  • RESET
  • IO0
  • IO1
  • IO2
  • IO3
  • IO4
  • IO5
  • IO6
  • IO7
  • IO8
  • IO9
  • AD4/SDA
  • AD5/SCL.

Key specifications

Item number
5998606

General information

Manufacturer
TinyCircuits
Category
Electronics modules
Manufacturer no.
ASD2004-R
Release date
22.11.2016
