Theben TR 611 top2 24V

Ratings
BrandMore from Theben
Delivered between Tue, 5.5. and Wed, 20.5.
free shipping

Nominal voltage2

Product details

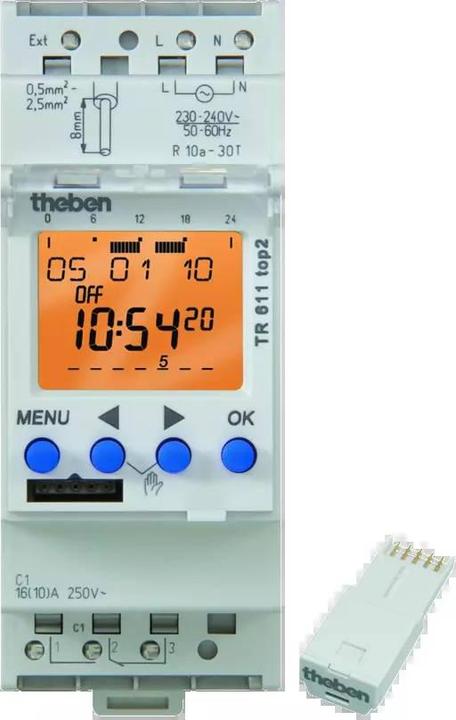

The digital timer TR 611 top2 24V from Theben is a versatile solution for the timed control of electrical devices. It is designed for mounting on a DIN rail and offers a user-friendly, text-oriented interface via a well-readable LCD display. With a power reserve and the ability to program summer and winter time changes, this timer is ideal for use in various applications. It supports both daily and weekly programs and allows for flexible programming through the OBELISK interface, which enables PC programming. The TR 611 top2 is equipped with DuoFix terminal blocks, ensuring easy and secure wiring.

  • External input for extended control options
  • Child safety lock for added security
  • App control for easy handling
  • IP20 protection class for indoor use
  • Includes memory card for programming.

Key specifications

Area of use
Inside
Type of time switch
Digital timer
Switching cycle
Weekly program
Mounting type
Top-hat rail
Documents
Technical data sheet.pdf

General information

Item number
32170916
Manufacturer
Theben
Category
Timers
Manufacturer no.
6114100
Release date
16.11.2022

Application range

Area of use
Inside

Timer properties

Type of time switch
Digital timer
Switching cycle
Weekly program
Number of programmes
56x
Mounting type
Top-hat rail

Safety

Protection type (IP code)
IP20

Power supply

Electric current
16 A
Nominal voltage
24 V

Smart home features

Smart Home
Not compatible
Requires Smart Home Hub
No

Scope of delivery

Scope of delivery
Memory card included

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
0 kg
Climate contribution
CHF 0.11

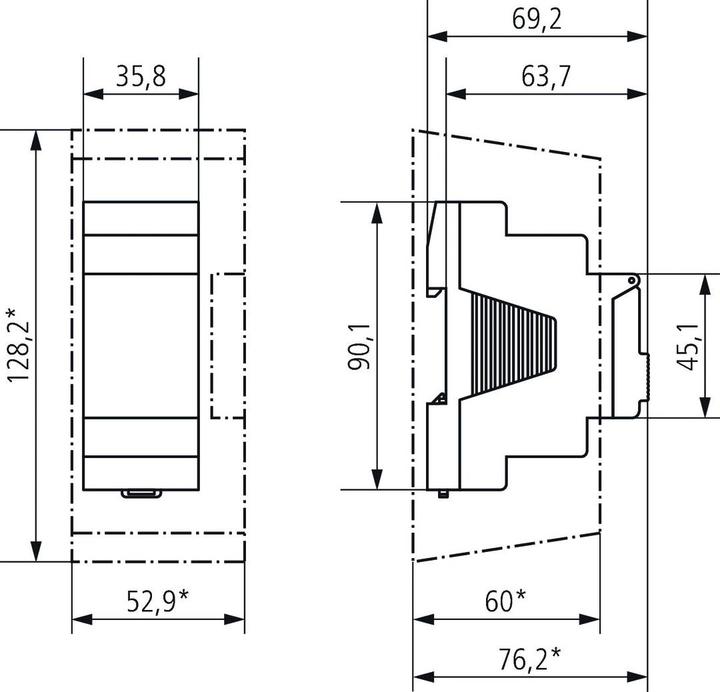

Product dimensions

Length
60 mm
Width
35 mm
Height
90 mm
