Product details

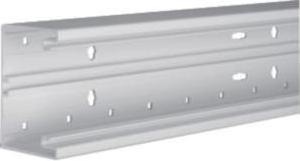

Tehalit Base Channel BR6510017035
Manufacturer: Tehalit

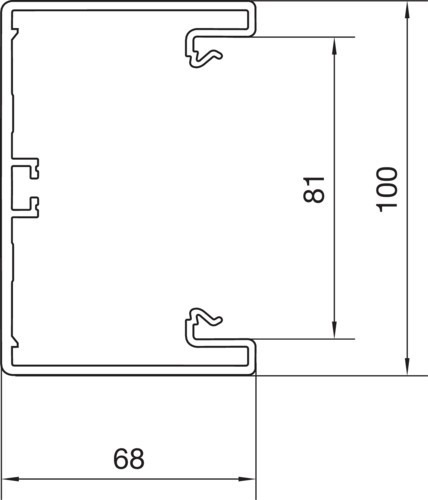

Description: Base channel 65x100mm OT 80mm
Type: BR6510017035
Width: 100 mm
Depth: 68 mm
Length: 2000 mm
Number of tops: 1
Tops included: no

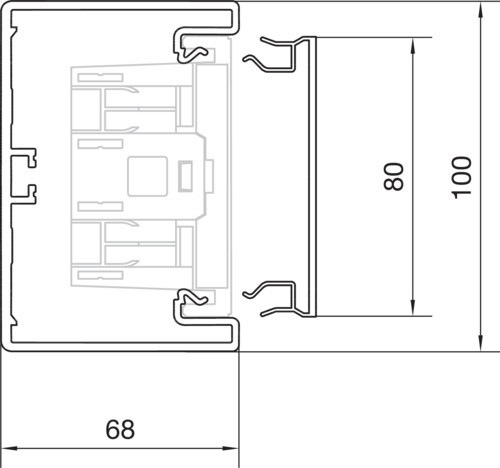

Top width 1: 80 mm
Top width 2: 0 mm
Top width 3: 0 mm
Symmetrical: yes
Rectangular shape: yes
Material: Plastic
Material quality: Polyvinyl chloride (PVC)
Halogen-free: no
Antibacterial treatment: no
Surface protection: untreated
Color: gray
RAL number: 7035
Back wall design (inside): continuous C-profile
With protective film: yes
Number of plug-in partitions: 1
With channel connector: yes
Mounting hole in the bottom: yes
Mounting type of tops: internal
With cable holding clip: no
Usable cross-section: 5750 mm²
Protection class (IP): IP40
Impact resistance: IK08
Operating temperature: -5..60 °C
Tehalit Base Channel BR6510017035: additional details
Base channel PVC front-facing BR 68x100mm top part 80mm in light gray. Base channel for the electrical installation channel system made of plastic according to DIN EN 50085-1 as a device installation channel with a top width of 80 or 120 mm for the installation of standard devices with or without additional covers. With bottom hole for direct wall mounting and additional rectangular hole for tool-free attachment of the channel using clip technology on brackets. With a top width of 80 mm, it features front-facing, tool-free device installation for securing devices and device installation boxes with quick fastening - an additional C-profile for device installation options as with all channels with a top width of 120 mm. Couplings for easy and precise channel installation, partitions, and cable retention clips available as accessories. Note: Sound and fire protection measures must be carried out professionally.
