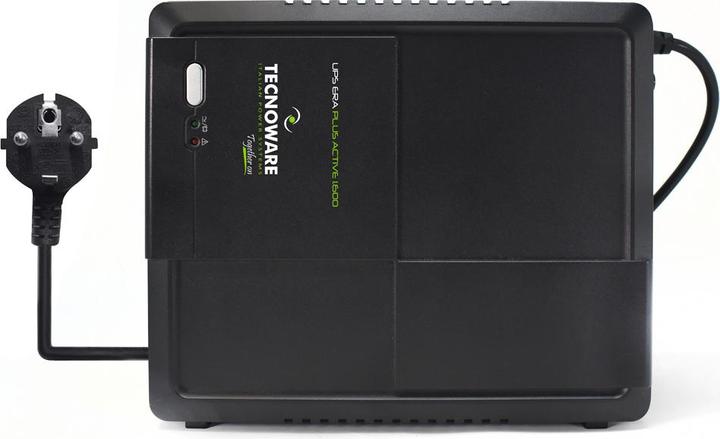

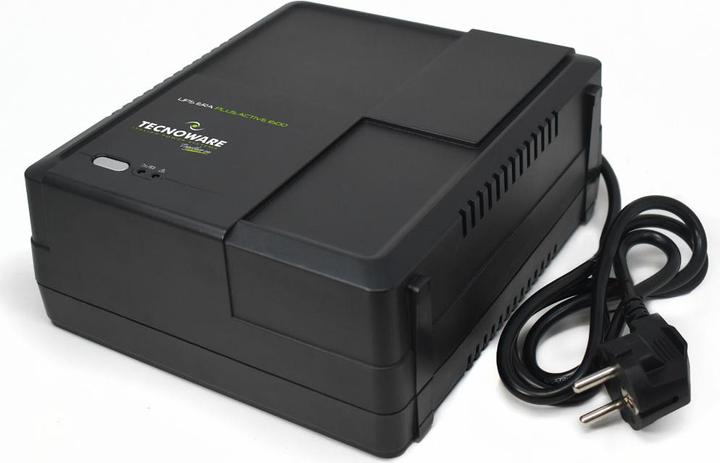

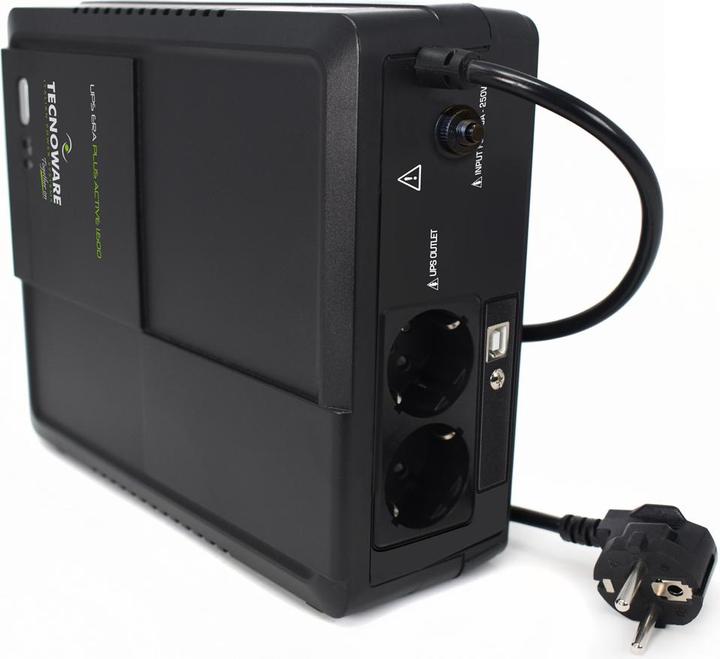

Tecnoware UPS ERA PLUS ACTIVE 1600 Group

1600 VA, 1120 W, Line-interactive UPS
Ratings
BrandMore from Tecnoware
Delivered between Wed, 22.4. and Wed, 29.4.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Power output2

Product details

The Tecnoware UPS ERA PLUS ACTIVE 1600 is a line-interactive uninterruptible power supply (UPS) designed to protect critical devices from power outages and voltage fluctuations. With an output capacity of 1.6 kVA and an output power of 1120 W, this model provides a reliable power source for various applications. The UPS is equipped with two AC outputs, allowing for flexible power supply options. The integrated lead-acid battery with a capacity of 11 Ah ensures a runtime of up to 40 minutes at full load, providing sufficient backup during power outages. Its compact design and IP20 protection rating make the UPS ideal for use in offices or other protected environments. Additionally, the Tecnoware UPS offers protection features such as undervoltage and overvoltage protection to safeguard connected devices.

  • Runtime of up to 40 minutes at full load
  • Supports sine wave output for stable power supply

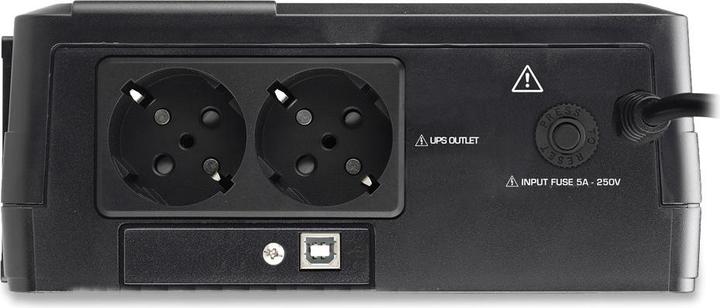

  • Two AC outputs for flexible connection options
  • Operating temperature range of 0 to 55 °C
  • USB port for easy monitoring and control.

Key specifications

Scope of application
Workplace + home use
Plug type
Type F
Battery type
Lead–acid battery
Operating time at full load
40 min

General information

Item number
43717936
Manufacturer
Tecnoware
Category
UPS
Manufacturer no.
FGCERAPLAT1602SCH
Release date
8.3.2024
May include power adapter
Yes

UPS properties

UPS type
Line-interactive UPS
Power output
1120 W
Output power capacity
1600 VA

UPS functions

UPS protection functions
Overvoltage protection, Undervoltage protection

Application range

Scope of application
Workplace + home use

Connector plug

Plug type
Type F

Connections

USB ports
USB-A

Mains supply properties

Input voltage
230 V

Operating conditions

Operating temperature
0 - 55 °C
Max. noise level
40 dB
Protection type (IP code)
IP20

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Battery weight per cell
3000 g
Voltage
12 V
Capacity
11 Ah
Operating time at full load
40 min
Operating time at half load
10 min

Voluntary climate contribution

CO₂ emissions
4.21 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x

Product dimensions

Height
82 mm
Weight
3.10 kg
Width
207 mm
Length
228 mm

Package dimensions

Length
29.20 cm
Width
28.30 cm
Height
12.10 cm
Weight
3.52 kg

30-day right of return
24 Months Warranty (Bring-in)
