Sumatrix Solarmodul Sunguide Schindeltech 12V 75W
75 W, 5 kgMore than 10 pieces in stock at third-party supplier
Performance2
Product details

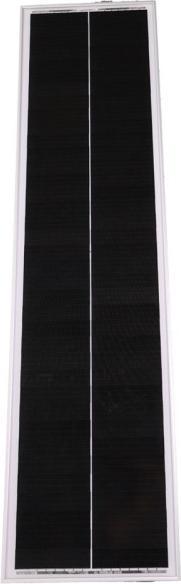

The slim Sunguide Shingletech 12V 75W panels are ideal for mounting on facades. Even when the modules are angled with a module holder, they do not extend far below the roof and are thus protected from snow. They are perfect for alpine and vacation cabins to support the battery over the winter. Thanks to the shingle technology, the module still generates partial power even if one section is shaded.
Applications:
- Alpine cabins
- SAC houses
- Weekend homes
- Rusticos
Technical Data:
Maximum power: 75 Wp
Technology: Monocrystalline / Shingle technology
Voltage at maximum power (Vmp): 21.50 V
Open circuit voltage (Voc): 25.34 V
Current at maximum power (Imp): 3.81 A
Short circuit current (Isc): 3.51 A
Junction box: IP65
Connection cable length: 90 cm
Connector type: MC4 compatible

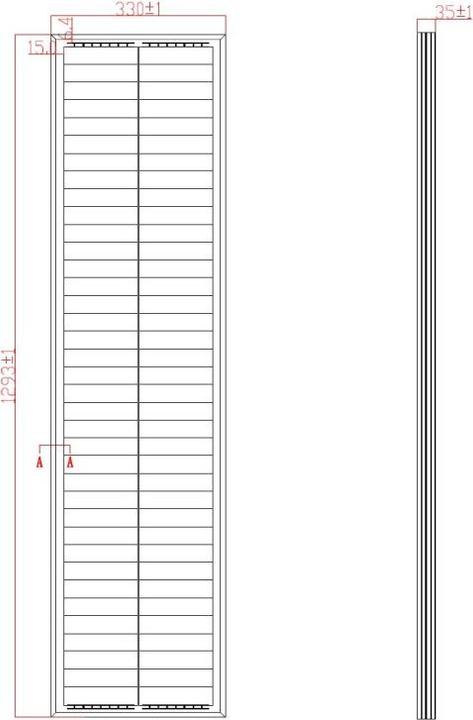

Dimensions: 1293 x 330 x 35 mm
Weight: 5 kg.
Solar panel type | Solar panel |
Cell type | Monocrystalline |
Nominal power | 75 W |
Length | 129.30 cm |
Width | 33 cm |
Item number | 53927763 |
Manufacturer | Sumatrix |
Category | Solar panels |
Manufacturer no. | GW-E075A |
Release date | 9.1.2025 |
External links |
Frame colour | Silver |
Material group | Metal |
Material | Monocrystalline |
Solar panel type | Solar panel |
Protection type (IP code) | IP65 |
Cell type | Monocrystalline |
Nominal power | 75 W |
Power capacity | 720 Wh |
Voltage (MPP) | 21.50 V |
Rated current (MPP) | 3.51 A |
Short circuit current | 3.81 A |
Open circuit voltage (UMPP) | 25.34 V |
Cable length | 0.90 m |

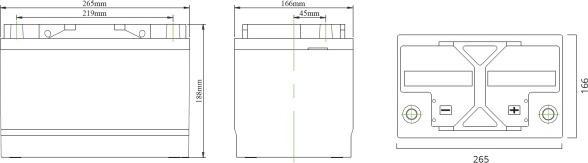

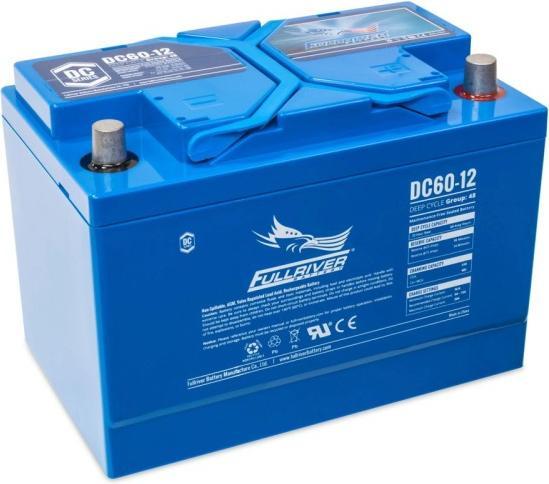

Battery type | AGM |
Battery | Battery |
CO₂ emissions | 331.15 kg |
Climate contribution | CHF 7.87 |
Length | 129.30 cm |
Width | 33 cm |
Height | 3.50 cm |
Weight | 5 kg |
