Silverstone SST-G11313530-RT - USB Type C, USB3.1 Gen.2 Upgrade kit for chassis

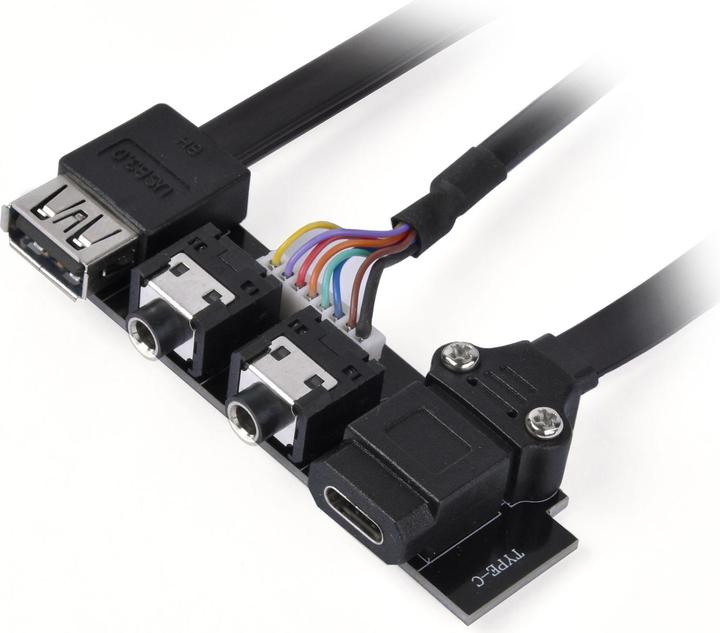

With the SilverStone SST-G11313530-RT USB-C retrofit kit, you can easily upgrade to USB-C 3.1 Gen. 2 on the front panel of your SilverStone case. The replacement offers not only a USB-C port but also a USB-A port, as well as headphone and microphone jacks.

The adapter is simply plugged into the place of the old USB-A front panel connector and connected to the motherboard. The swap is reversible and can be undone at any time.

Note: According to the USB 3.1 standard, the combined length of the external and internal cables must not exceed 1,000 mm to achieve the maximum USB 3.1 Gen 2 speed. Since the internal Type-C cable of G11313530-RT already measures 600 mm, the external cable must not be longer than 400 mm.

Technical details:

• Dimensions: 75 x 30 x 13 mm (W x H x D)
• Material: Copper, plastic
• Color: Black

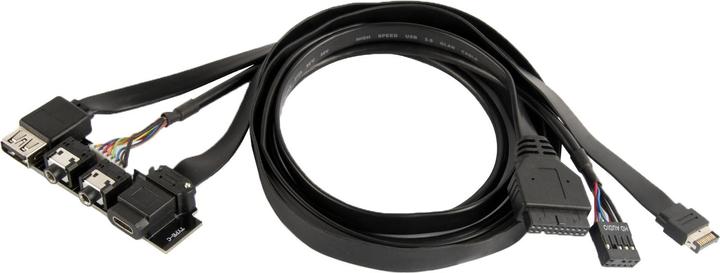

• Cable lengths:
• USB 3.0 cable: 800 mm
• USB 3.1 Gen 2 cable: 600 mm
• Audio cable: 810 mm

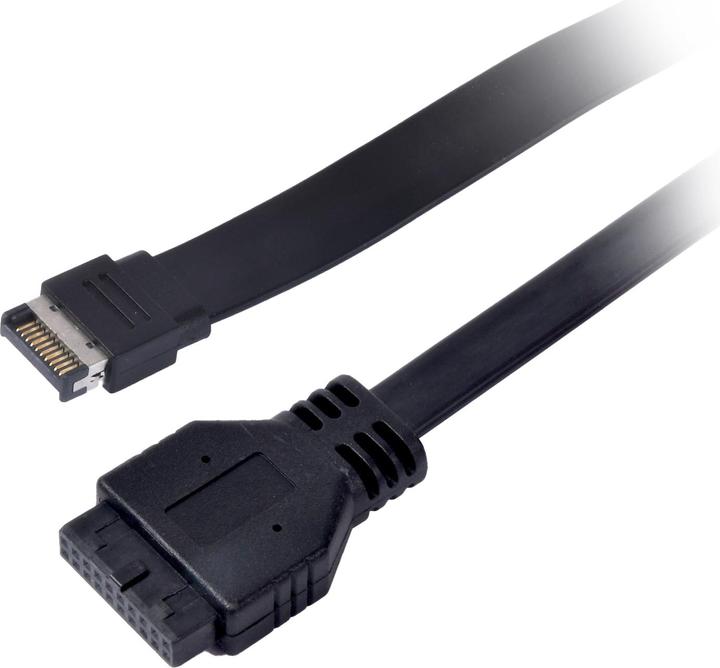

• Motherboard connections: USB internal 20-pin (Key A), USB internal 19-pin, Audio
• I/O ports: 1x USB-C, 1x USB-A, 2x 3.5 mm jack for Audio In/Out
• USB standard:
• USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
• USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
• Compatible SilverStone cases:
• CS380, CS381, DS380
• FT03, FT03-MINI, FT04, FTZ01, FTZ01-E
• GD04-USB 3.0, GD05, GD06, GD07, GD08
• KL04
• LD03
• ML03, ML04, ML07
• PS08, PS09, PS10, PS12, PS14
• RL04, RL05
• RV04, RVZ01, RVZ01-E, RVZ03
• SG05, SG05-Lite, SG07, SG08, SG08-LITE, SG11, SG13
• TJ04-E.
