Silverstone RM23-502-Mini

2U rack server case with black front. Suitable for boards from Mini-ITX to Micro-ATX. Two 80 x 25 mm fan slots at the front. Four low-profile expansion slots. 2x 5.25-inch bays at the front, 2x 3.5-inch and 1x 2.5-inch slots internally.

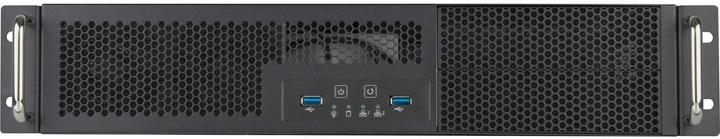

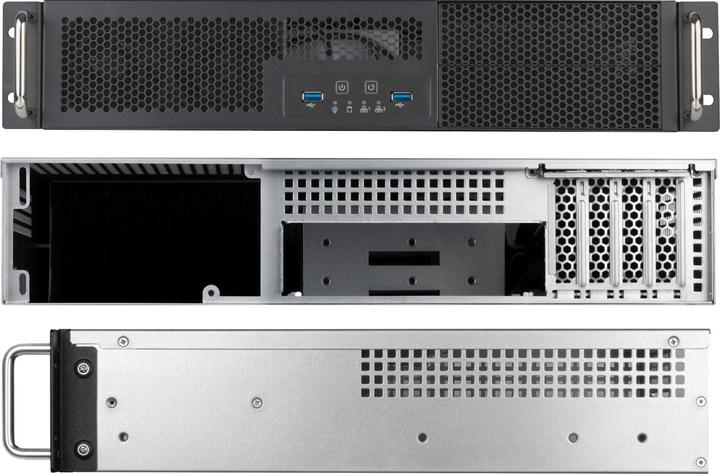

The features of the SilverStone SST-RM23-502-MINI server case in detail: The SilverStone SST-RM23-502-MINI is a 2U server case with a black front. It features a large perforation for improved airflow, numerous status LEDs, two USB 3.0 ports, as well as one power and one reset button. The two handles at the front make it easier to pull the case out of the server rack with optional telescopic rails.

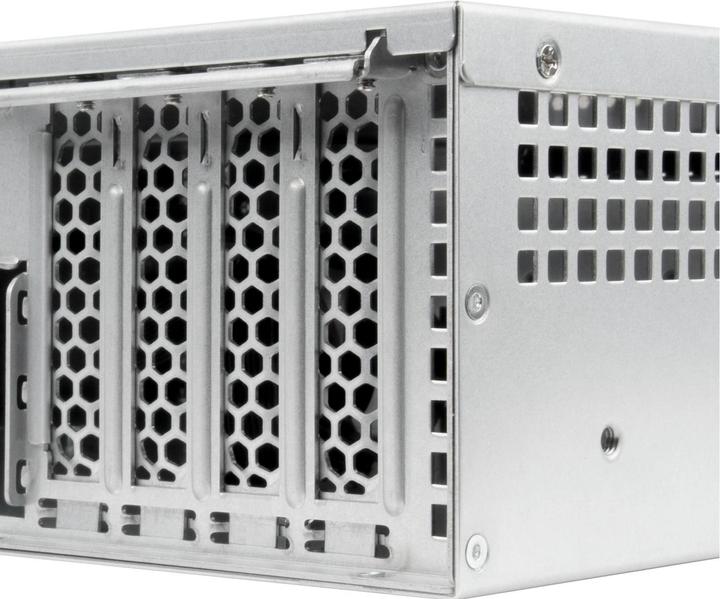

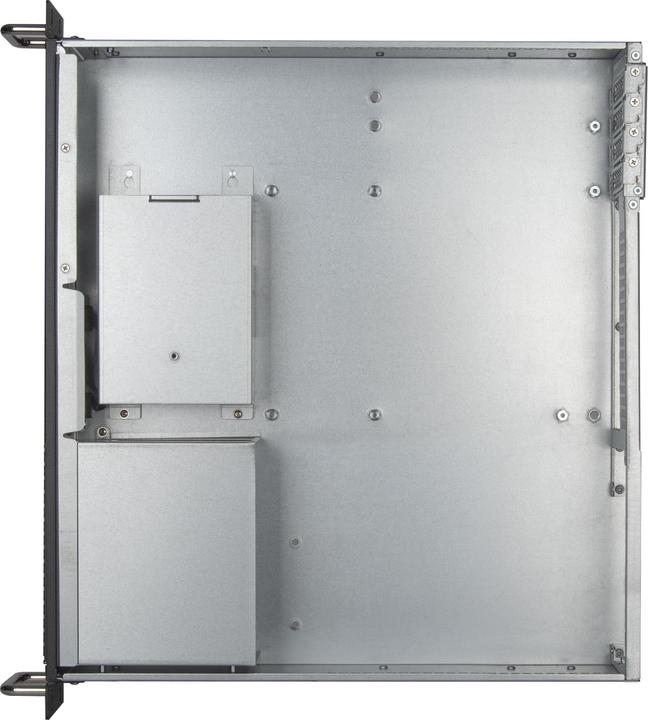

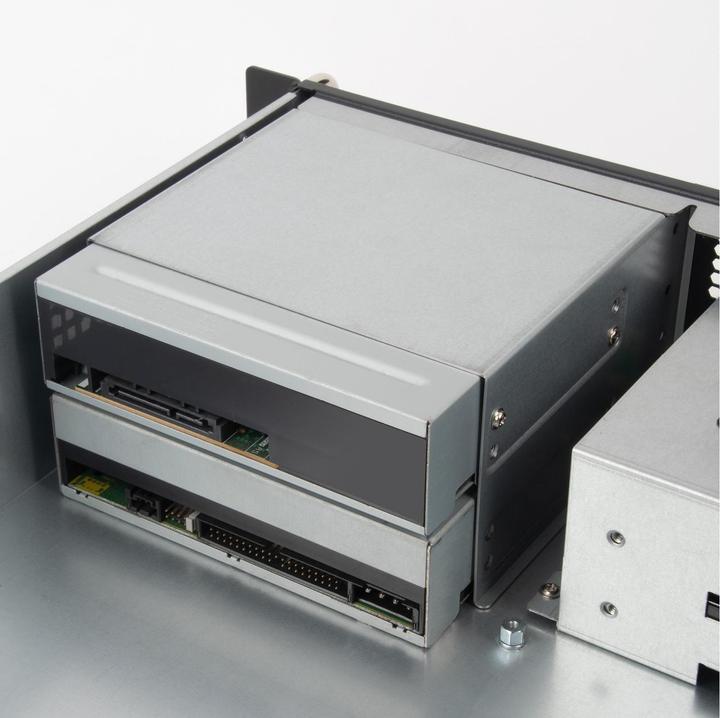

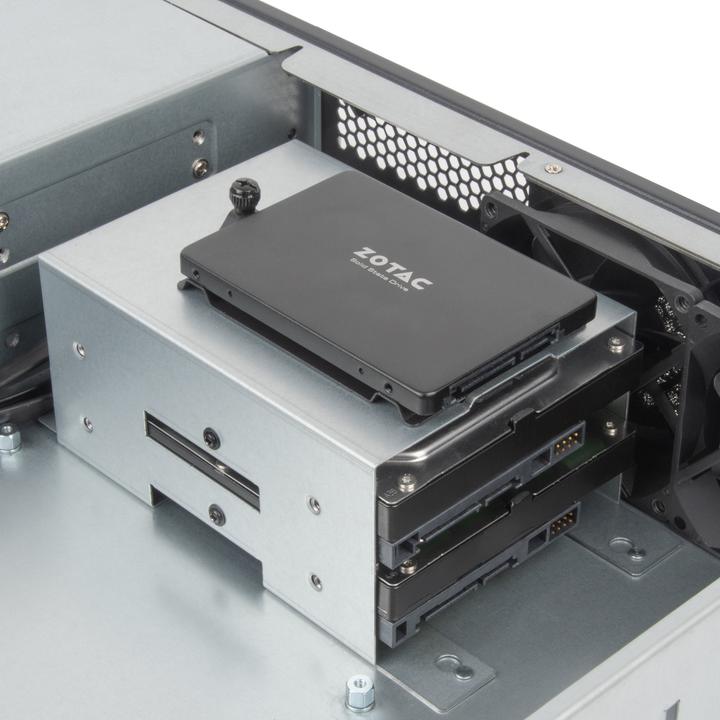

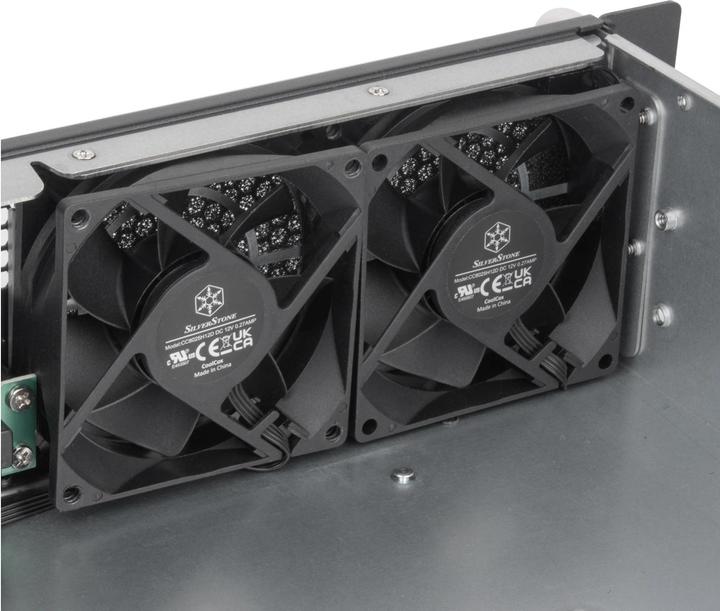

The case internally accommodates two 3.5-inch HDDs and one 2.5-inch drive. Two 5.25-inch drives can be installed at the front. Motherboards up to the Micro-ATX form factor can be mounted. There are four low-profile slots available for expansion cards. For cooling the hardware and drives, there are two slots for 80x25 mm fans at the front.

Technical details:

• Dimensions: 430 x 88.5 x 400 mm (W x H x D)
• Case form factor: 2U
• Net weight: approx. 4.8 kg
• Material: Steel (1 mm)
• Color: Black, Silver
• Form factor: Mini-ITX, Micro-ATX
• Power supply: 2U single or 2U redundant, ATX
• Expansion slots: 4 (Low Profile)
• Drive bays: 2x 5.25 inches (external), 2x 3.5 inches (internal), 1x 2.5 inches
• Fans possible: 2x 80 x 25 mm (front)
• Front I/O: 2x USB 3.0, 1x power button, 1x reset button, 1x LED (operation), 1x LED (HDD status), 2x LED (LAN)
• Maximum CPU cooler height: 65 mm.
