Siemens Thermal overload relay 20 - 25 A

Ratings
BrandMore from Siemens
Delivered between Tue, 3.2. and Fri, 6.2.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Electric current output12

Product details

FLC motor power: 20 to 25 A
Contact rated current: 25 A
Contact configuration: 3P
Range: Sirius Innovation
Nominal contact voltage: 690 Vac
Mounting type: Direct contactor
Series: 3RU
Contact configuration: Normally open/normally closed contact
Number of auxiliary contacts: 2
Power: 11 kW
Connection type: Screw mounting
Depth: 73 mm
Operating temperature min: -40°C

CE, UL, CSA. Screw terminals can only be used with screw terminal overload relays, and spring terminals can only be used with spring terminal overload relays. Overload relays - 3RU series. Switch position indication and test function, stop button, manual/automatic reset selector switch. Impulse withstand voltage: 6 kV, insulation voltage: 690 V. Brackets available for surface or DIN rail mounting. 3RU21 thermal overload relays up to 80 A are designed to protect current sensitive loads with normal starting. These thermal overload relays are intended for use with Sirius contactors of sizes S0 and S00.

Key specifications

Scope of delivery
3ru2126-4db0, Direct cultivation, Overload relay 20-25A, Screw connection
Relay type
Overload relay
Electric current output
25 A
Output voltage
690 V
Number of poles
3x

General information

Item number
9949486
Manufacturer
Siemens
Category
Relays
Manufacturer no.
3RU2126-4DB0
Release date
22.10.2018

Relay properties

Relay type
Overload relay
Output voltage
690 V
Electric current output
25 A
Number of openers
1x
Number of closers
1x
Number of poles
3x
Max. Switching capacity
11 kW
Manufacturer Type
3ru2126-4db0

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
3ru2126-4db0, Direct cultivation, Overload relay 20-25A, Screw connection

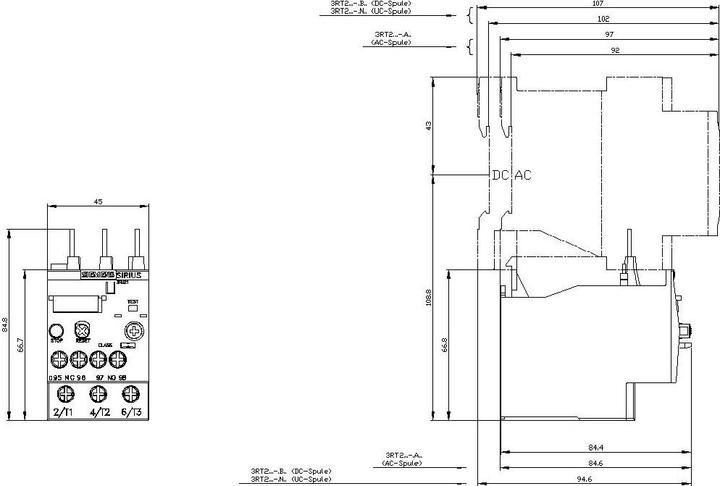

Product dimensions

Length
106 mm
Width
104 mm
Height
52 mm
