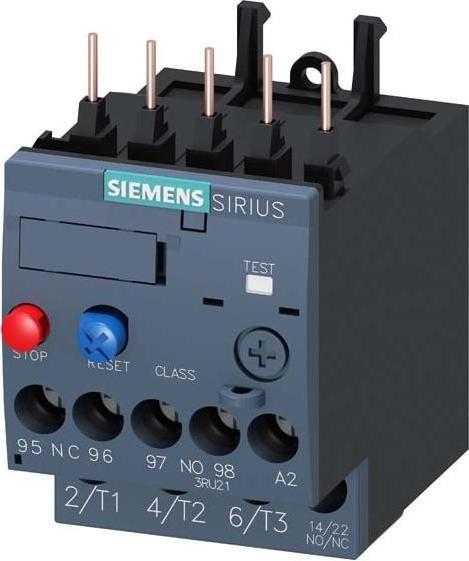

Siemens Thermal overload relay 0.28 - 0.40 A

Product details

FLC motor power = 0.28 → 0.4 A
Contact rated current = 400 mA
Contact configuration = 3P
Range = Sirius Innovation
Nominal contact voltage = 690 Vac
Mounting type = direct contactor
Series = 3RU
Contact
configuration = normally open/normally closed contact
Number of auxiliary contacts = 2
Power = 0,09 kW
Reset type = Automatic, manual
Depth = 73mm
Operating temperature range = -40 → +70 °C

CE, UL, CSA. Screw terminals can only be used with screw terminal overload relays and spring terminals can only be used with spring terminal overload relays. Overload relays - 3RU series. Switch position indication and test function Stop button Manual/automatic reset selector switch Screw terminal or spring terminal versions Impulse withstand voltage 6 kV Insulation voltage 690 V Brackets available for surface or DIN rail mounting, see ; 706-1699 706-1699 etc. 3RU21 thermal overload relays up to 80 A are designed to protect current sensitive loads with normal starting. These thermal overload relays are intended for use with Sirius contactors of sizes S0 and S00.

Key specifications

input voltage
690 V
Electric current output
0.40 A
Item number
9947675

General information

Manufacturer
Category
Manufacturer no.
3RU2116-0EB0
Release date
10/22/2018

Relay properties

input voltage
690 V
Electric current output
0.40 A
Manufacturer Type
3ru2116-0eb0

Sustainability

Sustainability
Sustainable products and raw materials
Label
SBTi

Package dimensions

Width
8 cm
Height
5 cm
Weight
145 g
