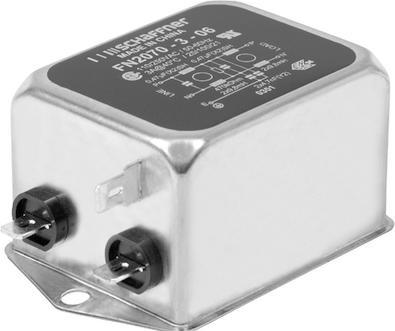

Schaffner EMV Mains filter, 36 A, 250 VAC

The FN2070-36-08 power line filter from Schaffner EMV is a high-performance device designed for use in various electrical applications. With a rated voltage of 250 VAC and a rated current of 36 A, this filter provides a reliable solution for reducing electromagnetic interference (EMI) in AC and DC applications. The power line filter is suitable for operating temperatures ranging from -25 °C to 100 °C, making it versatile for different environments. Its compact design, measuring 57.5 mm in width, 45.4 mm in height, and 156 mm in length, allows for easy integration into existing systems. The inductance of 1.23 mH and the capacitances of 2.2 µF (Cx) and 4.7 nF (Cy) ensure effective filtering, while the leakage current of 660 µA and the resistance of 220 kΩ guarantee the safety and efficiency of the device. The power line filter is equipped with a screw connection that allows for stable and secure mounting.

• Operating temperature range of -25 °C to 100 °C
• Inductance of 1.23 mH for effective filtering
• Leakage current of only 660 µA for increased safety
• Resistance of 220 kΩ to enhance efficiency
• UL 94 V-2 flammability rating for additional safety.
