Schaffner EMV Mains filter, 6A, 250VAC, quick connection/plumb bob

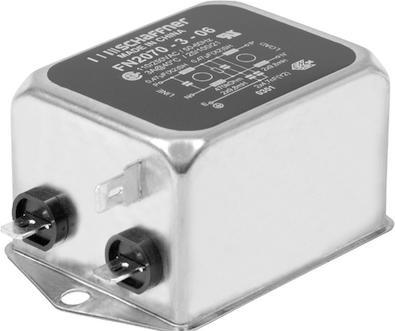

The FN2070-6-06 network filter from Schaffner EMV is a highly advanced AC/DC EMI filter designed for a wide range of applications. With a rated voltage of 250 VAC and a rated current of 6 A, this filter delivers reliable performance in demanding environments. The network filter is suitable for operating temperatures ranging from -25 °C to 100 °C, making it versatile for various uses. Its compact design, measuring 57.5 mm in width, 45.4 mm in height, and 113.5 mm in length, allows for easy integration into different systems. The inductance of 7.8 mH and the capacitances of 1 µF (Cx) and 4.7 nF (Cy) ensure effective filtering of electromagnetic interference. The network filter features a quick-connect/solder terminal type, simplifying installation. Additionally, it meets the flammability class UL 94 V-2, providing extra safety.

• Operating temperature range of -25 °C to 100 °C
• Inductance of 7.8 mH for effective filtering
• Leakage current of 660 µA for enhanced safety
• Resistance of 220 kΩ to reduce interference
• UL 94 V-2 flammability class for increased safety.
