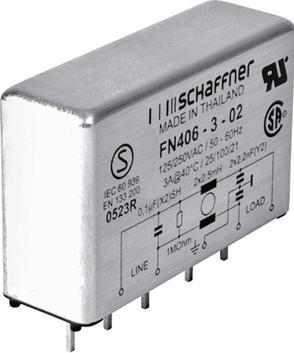

Schaffner EMV Mains filter, 3A, 250VAC, print pins

The FN406-3-02 network filter from Schaffner EMV is an ultra-compact EMC filter designed for a wide range of applications in electrical engineering. With a rated voltage of 250 VAC and a rated current of 3 A, this filter provides reliable performance across a broad temperature range of -25 °C to 100 °C. The inductance of 2.5 mH and the capacitances of 100 nF (Cx) and 2.2 nF (Cy) ensure effective interference filtering. The network filter is equipped with printed pins, allowing for easy integration into various circuits. The flammability class UL 94 V-0 provides additional safety and reliability during operation.

• Ultra-compact EMC filter design
• Operating temperature range of -25 °C to 100 °C
• Inductance of 2.5 mH for effective interference suppression
• Leakage current of only 373 µA
• Flammability class UL 94 V-0 for increased safety.
