Roline 19-Zoll Wandgehäuse Basic Plus 6HE

6 RU, 19 inch rack
Delivered between Wed, 10.9. and Thu, 11.9.
Only 2 pieces in stock at supplier
free shipping

Product details

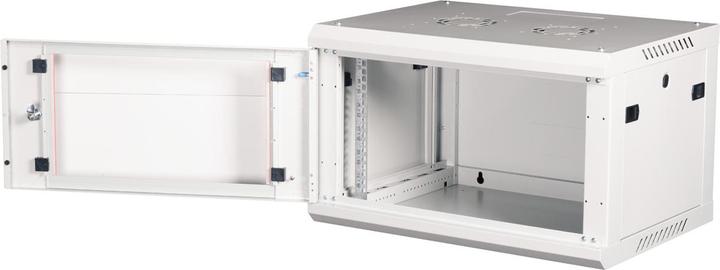

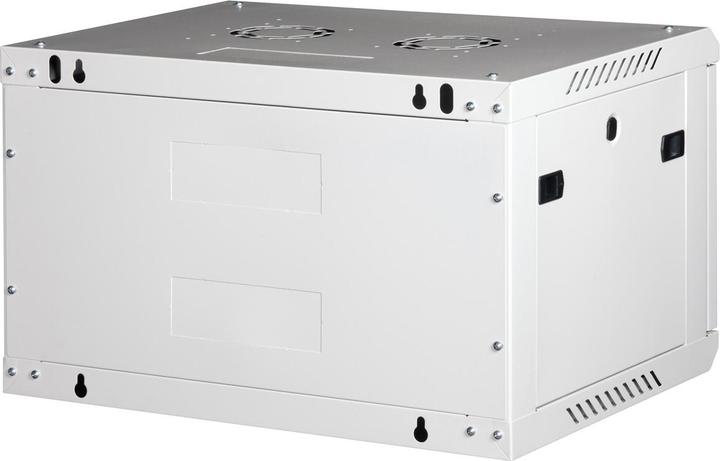

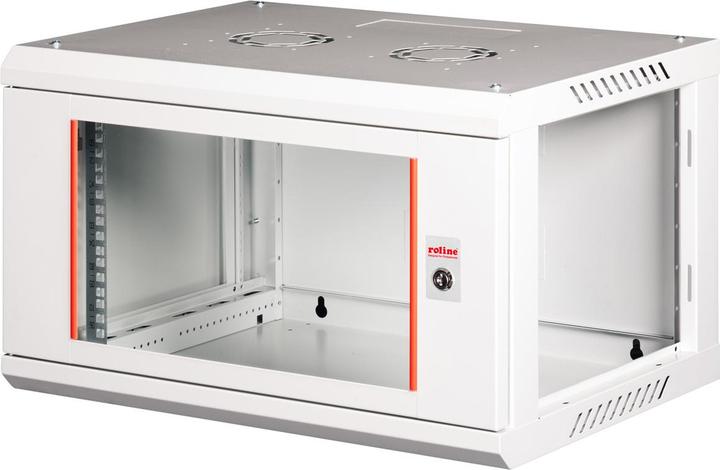

ROLINE 19-inch Wall Cabinet Basic Plus with a depth of 450 mm. The wall cabinets of the ROLINE Basic Plus series have been specifically designed for flexible network cabling. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The base and the top are equipped with a punched cable entry. Additionally, a punched area in the top allows for the installation of a fan module. Inside, there is a pair of galvanized profile rails with a height unit of 483 mm (19"), which are also adjustable in depth. The robust steel constructions of the cabinets are made from strong steel sheet and are available in powder-coated Grey (RAL 7035) or Black (RAL 9005). The side panels are equipped with a quick-release mechanism and are removable, which improves accessibility. Optionally, a lock can also be installed in the side panels. Wall mounting is done in two simple steps: first, the back panel is screwed to the wall, and then it is connected to the cabinet. Optionally, leveling feet or wheels can be used to make the cabinets freestanding.

Key specifications

Type
Cabinet
Usable installation depth
450 mm
Protection type (IP code)
IP20
Ventilation
Passive
Server cabinet features
DoorLockableRemovable side panelsSafety glass
Item number
57389590

General information

Manufacturer
Roline
Category
Server cabinets
Manufacturer no.
26.21.0123
Release date
4.4.2025
Sales rank in Category Server cabinets
35 of 3692

Colour

Colour
Grey
Exact colour description
RAL 7035 Light grey

Material

Material group
Metal
Material
Glass front doorSteel

Server cabinet properties

Type
Cabinet
Rack size
19 inch rack
Form factor size
6 RU
Usable installation depth
450 mm
Max. weight
80 kg
Protection type (IP code)
IP20
Wall thickness
1.20 mm
Ventilation
Passive
Server cabinet features
DoorLockableRemovable side panelsSafety glass

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2x keysAssembly instructionsEarthing cable setInstallation set (screws, cage nuts, washers)ROLINE Basic Plus wall-mounted enclosure

Product dimensions

Height
379 mm
Width
600 mm
Length
450 mm
Weight
11.25 kg
