Rittal Switch-disconnector module SV 967
In Detail

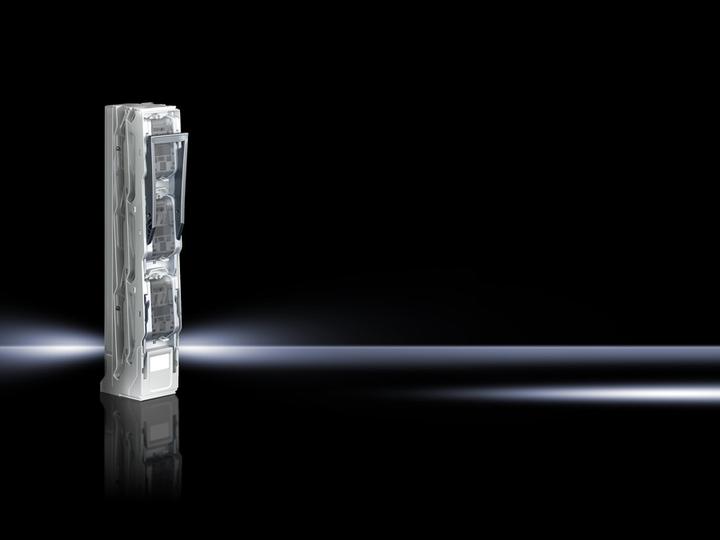

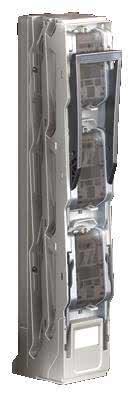

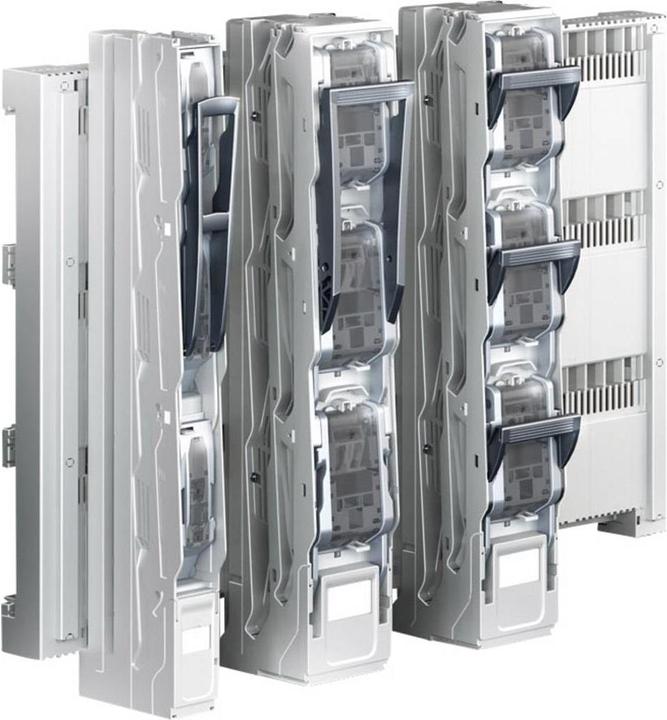

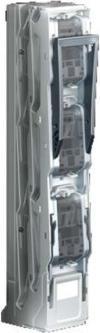

The SV 967 load switching module from Rittal is a high-quality accessory for server cabinets, specifically designed for use in electrical distributions. It is an NH fuse load switching bar of size 3, ensuring reliable and safe power distribution. With a maximum rated operational current of 630 A and a rated operational voltage of 690 V, this module is suitable for demanding applications. The bar is switchable in three poles and features a robust construction made of polyamide (PA 6.6), classified according to UL 94-V0, which guarantees high fire resistance. The contact paths are made of partially silver-plated hard copper, enhancing conductivity and durability. The module is designed for connection to busbars with a cross-section of 10 mm and a rail system with a center distance of 185 mm. It is suitable for both transformer installation and use with touch protection covers, requiring the use of a contact clamp.
- Maximum rated operational current of 630 A
- Suitable for busbars with a cross-section of 10 mm
- Robust construction made of polyamide (PA 6.6)
- Partially silver-plated hard copper contact paths
- 3-pole switching capability for flexible applications.
