Riello On-Line UPS System from 700VA to 3000VA SEP 3000 - Online UPS

3000 VA, 2700 W, Online double converter UPS
Ratings
Delivered between Sat, 7.6. and Sat, 14.6.

Product details

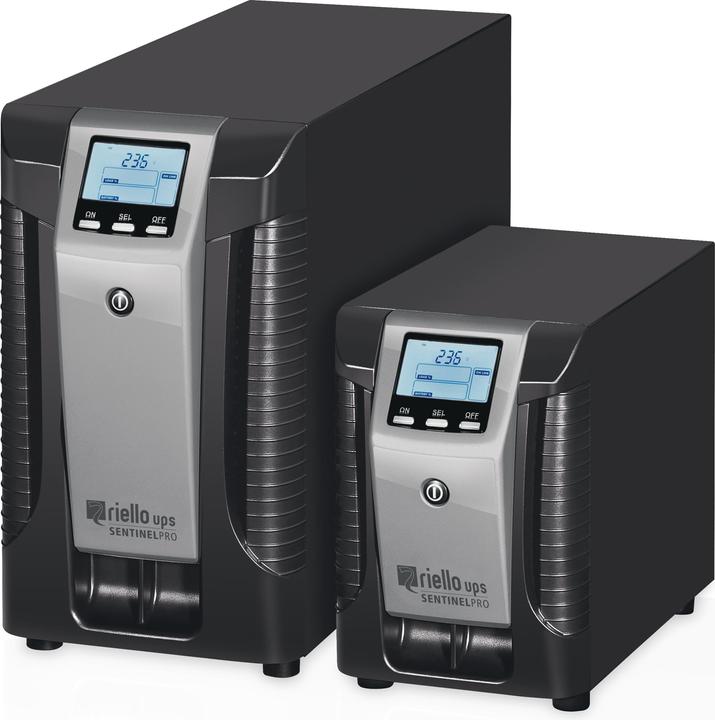

Sentinel Pro is the latest evolution of the successful Riello Dialog Plus online UPS. This development has been designed with the environment in mind and is part of the Riello ECO Line of UPS.

Sentinel Pro is an online double-conversion UPS offering the highest levels of reliability and protection for critical servers, voice, and data processing IT systems. For long runtime applications, Sentinel Pro (ER models) can be fitted with matching battery extension packs, which also include additional battery boost chargers.

In terms of communications, each Sentinel Pro has a built-in mimic panel with an LCD to show input and output voltages and battery charge status. The inverter is a totally new design, fully microprocessor controlled and constructed to achieve the highest levels of operating efficiency and configuration options. Sentinel Pro UPS also has USB communication ports as standard, with a built-in expansion slot for additional adapters, protocol converters, and related contact cards.

The UPS is highly efficient. Sentinel Pro is designed to save energy and has a power-off push-button feature to reduce energy consumption to zero when no load is connected or switched off.

Key specifications

Operating time at full load
5 min
Model
Desktop
Scope of application
Workplace + home use
Plug type
C20
Item number
15666624

General information

Manufacturer
Riello
Category
UPS
Manufacturer no.
CSEP3K0AA5
Release date
15.4.2021

UPS properties

UPS type
Online double converter UPS
Power output
2700 W
Output power capacity
3000 VA
Model
Desktop
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection, Undervoltage protection

Application range

Scope of application
Workplace + home use

Connector plug

Plug type
C20

Connections

Connections
RS-232, USB, USB 2.0
USB ports
USB-C
Network connections
RJ45 (1x)

Mains supply properties

input voltage
180 - 264 V
output voltage
220 - 240 V
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
overvoltage protection
300 J
Efficiency full load
98 %
Efficiency battery operation
98 %

Operating conditions

Operating temperature
0 - 40 °C
Operating humidity
5 - 95%
Max. noise level
40 dB

Battery properties

Battery category
Device batteries
Battery
Battery
Battery type
VRLA
Voltage
180 V
Charging time
4 h
Operating time at full load
5 min
Operating time at half load
9 min

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Instruction manual
Items per sales unit
1 x

Product dimensions

Height
333 mm
Weight
28 kg
Width
190 mm
Length
333 mm
