RedBearLabs RedBearLab BLE Nano Kit nRF51822

Art-Nr 5999061
 Currently unavailable. Delivery date unknown.

Availability

Mail delivery

  • Currently unavailable. Delivery date unknown.

Collection

  • Basel: Currently unavailable. Delivery date unknown.
  • Bern: Currently unavailable. Delivery date unknown.
  • Dietikon: Currently unavailable. Delivery date unknown.
  • Geneva: Delivery date unknown
  • Kriens: Currently unavailable. Delivery date unknown.
  • Lausanne: Currently unavailable. Delivery date unknown.
  • St Gallen: Currently unavailable. Delivery date unknown.
  • Winterthur: Currently unavailable. Delivery date unknown.
  • Wohlen: Delivery date unknown
  • Zurich: Currently unavailable. Delivery date unknown.

Information subject to change.

View details

Description

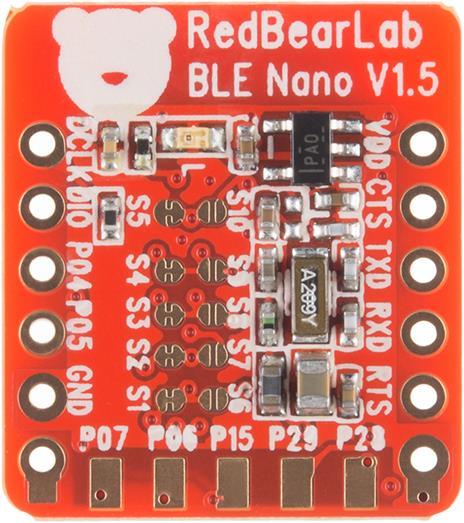

The BLE Nano from RedBearLab is the smallest Bluetooth 4.1 Low Energy
(BLE) development board in the market and with the included MK20 USB
in this kit you'll be able to deploy firmware to BLE Nano even easier.

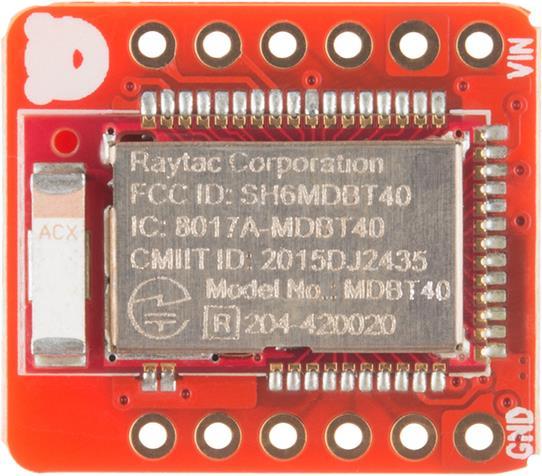

At each BLE Nano's core is a Nordic nRF51822, an ARM Cortex-M0 SoC
plus BLE capable of running at 16MHz with ultra low power consumption.
The RedBearLab BLE Nano also supports numerous different wireless
devices running iOS 7/8, Android 4.3 or higher, and Windows Phone 8.1.

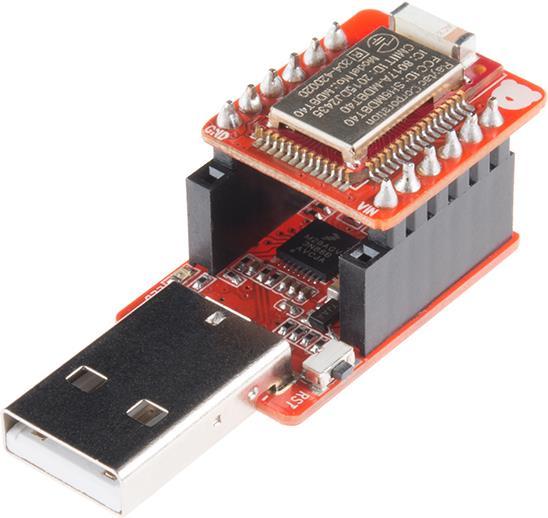

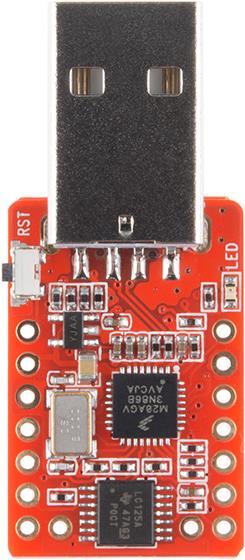

The MK20 board functions as a USB dongle, accepting 5V from the USB
port and regulating it to 3.3V via the onboard LDO which can be used
to power RedBearLab BLE Nano. When plugged into your computer the USB
Board will appear as both a serial port and a removable mass storage
disk. Please refer to the Getting Started guide in the Documents
section below to learn how to deploy firmware using MK20 USB board.

Developing a Bluetooth Smart enabled 'appcessory' (accessory device +
companion application) is easier than ever. You can quickly produce
prototypes and demos targeted for Internet of Things (IoT) and other
interesting projects. The RedBearLab BLE Nano can operate under 1.8V
to 3.3V, making it able to work in conjunction with a wide variety of
electronic components. It should be noted that the RedBearLab BLE Nano
can accept 3.3V to 13V from the VIN pin, however voltage will be
regulated to 3.3V via the on-board LDO regulator due in part to the
nRF51822 IC. Since the RedBearLab BLE Nano can work as low as 1.8V,
the MK20 USB board has been designed to run at 1.8V as well. All you
need to do to get the USB board to run at 1.8V as well is just short
the switch S, then the regulator will output 1.8V instead, allowing
your Nano to work with applicable components.

Note: The RedBearLab BLE Nano Kit includes two 1x6 male and female
headers that can be soldered on after purchase for easy interface.

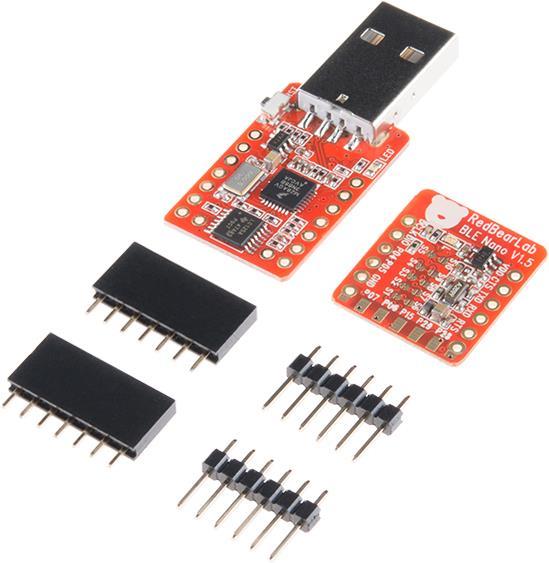

Includes:

* 1x RedBearLab BLE Nano
* 1x MK20 USB Board
* 2x Header - 1x6 (Male, 0.1")
* 2x Header - 1x6 (Female, 0.1")

Features:

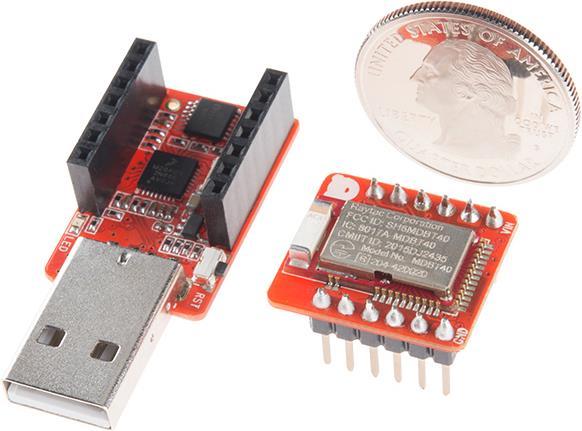

* Smallest BLE development board, only 18.5mm x 21.0mm
* Nordic nRF51822 ARM Cortex-M0 SoC supports both BLE Central and
BLE Peripheral roles
* 2.4 GHz transceiver
* Ultra low power consumption
* Support voltage from 1.8V to 3.3V
* Software development using mbed.org, GCC, Keil or Arduino
* Lots of libraries and examples available
* Easy firmware deployment with the MK20 USB board
* Work with our free Android App and iOS App

Links:

* Getting Started [1]
* Product Page [2]

Links:
------
[1] http://redbearlab.com/getting-started-nrf51822
[2] http://redbearlab.com/blenano/
more

Specifications

Click 'show more' to display specifications.

General information

Manufacturer RedBearLabs
Product type Electronics modules
Item number5999061
Manufacturer no.WRL-13730
