Product details

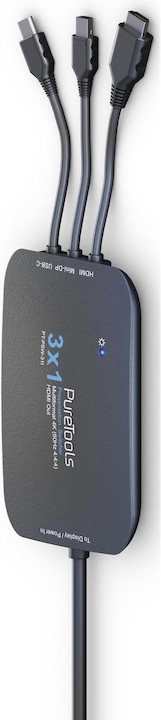

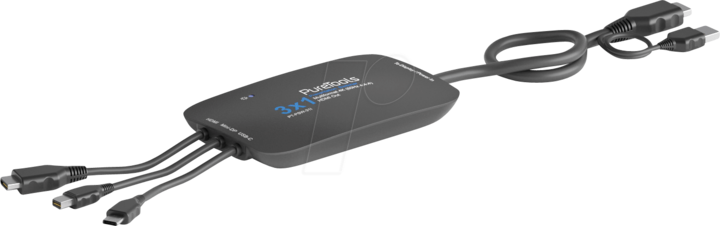

3x1 4K 18Gbps Multiformat Presentation Switch

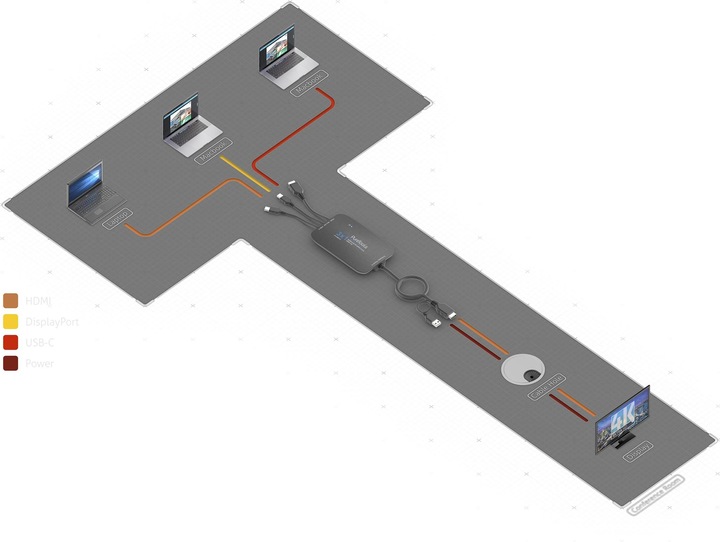

The PT-PSW-31I is a 3x1 multiformat presentation switch with HDMI 2.0 support for resolutions up to 4K@60Hz. It distributes AV signals from HDMI, Mini DisplayPort, and/or USB-C inputs to a single HDMI output. The device has very low power consumption and can be powered via a single display-side USB-A connection. The automatic input signal detection remembers the last connected signal source and automatically switches it to the output. Additionally, it will also automatically switch to the first available input signal. The PT-PSW-31I is suitable for various applications in different locations, such as classrooms, small meeting rooms, lecture halls, etc.
The PureTools Series - high-quality AV products for commercial applications
High-quality electronic products for commercial applications. The PureTools range includes premium audio-video electronic products such as switches, splitters, converters, and extenders for commercial AV installations and applications. The focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI, and SDI. The sophisticated technology adhering to the latest standards, combined with intelligent innovations, makes the practical PureTools series exceptional for professional installers and ensures optimal project execution through consistent performance.
Switch Box Type | Video Switch |
Connectable devices (input) | 3 |
Connectable devices (output) | 1 |
Main device port | DisplayPort, HDMI, USB-C |
Video connections | HDMI Type A, Mini DisplayPort (1x) |
Audio Connections | 1 x USB-C, HDMI (1x) |
Item number | 15851476 |
Manufacturer | Puretools |
Category | Switch box |
Manufacturer no. | PT-PSW-31I |
Release date | 16.9.2019 |
Connectable devices (input) | 3 |
Switch Box Type | Video Switch |
Connectable devices (output) | 1 |
Max. picture resolution | 3840 x 2160 pixels |
HDMI version | 2.0 |
Max. data transfer rate | 2250 MB/s |
Refresh rate | 60 Hz |
Cable length | 300 cm |
Main device port | DisplayPort, HDMI, USB-C |
Video connections | HDMI Type A, Mini DisplayPort (1x) |
Audio Connections | 1 x USB-C, HDMI (1x) |
USB ports | USB-C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x Accessory Kit, 1x PT-PSW-31I - 3x1 4K 18Gbps multi-format presentation switcher |
Length | 14 cm |
Width | 8 cm |
Height | 2 cm |
Weight | 360 g |
