Purecrea Flush-mounted push-button green 7mm 2P
Delivered between Tue, 1.7. and Wed, 2.7.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Product details

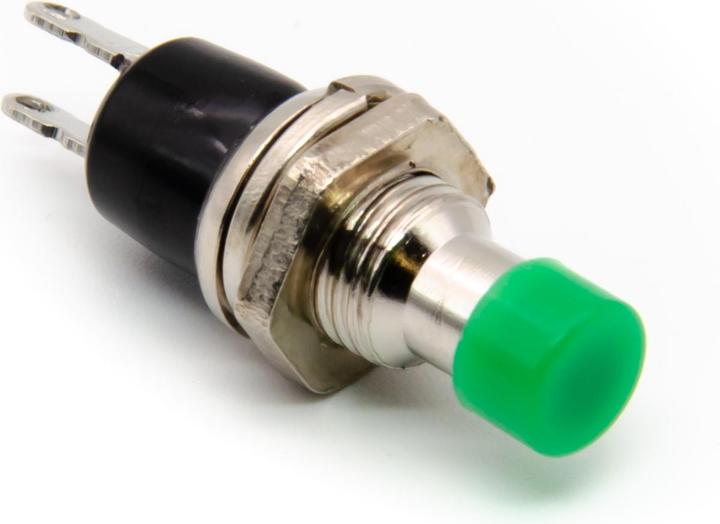

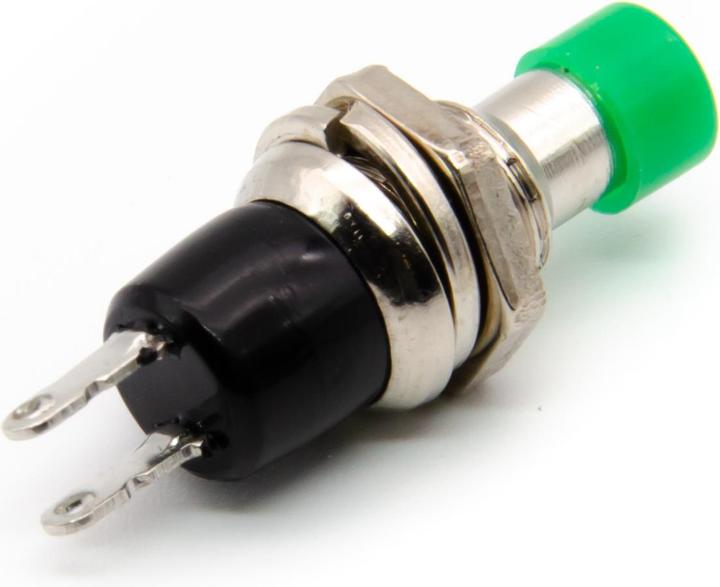

This inexpensive green PBS-110 push button/switch is great for your DIY Arduino projects. If you activate the Pull UP resistor on an input of your Arduino, you can connect the push button to this input and GND. If the button is not pressed, the signal is set to 1, as soon as the button is pressed, the input drops to 0.
Info: When soldering, do not apply too much heat for too long, otherwise the plastic will melt and the button will be destroyed.
Technical details:
Colour: green
Material: plastic / metal galvanised
Switching contact: NO (normally open)
Contact: Soldering
Number of pins: 2
Maximum voltage: 50V
Maximum current: 0.5A
Hole diameter for installation: 7mm
Weight: 3.5g
Scope of delivery:
1x push button green
1x M7 nut
1x spring washer.
Pushbutton + switch type | Button |
Colour | Green |
Item number | 36133369 |
Manufacturer | Purecrea |
Category | Buttons + Switches |
Release date | 7.6.2023 |
Sales rank in Category Buttons + Switches | 25 of 17035 |
Colour | Green |
Pushbutton + switch type | Button |
LED colour | without LED |
rank | Push button |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Scope of delivery | 1x M7 nut, 1x push-button green, 1x spring washer |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
