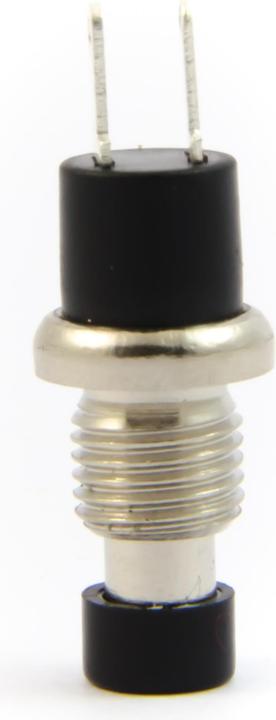

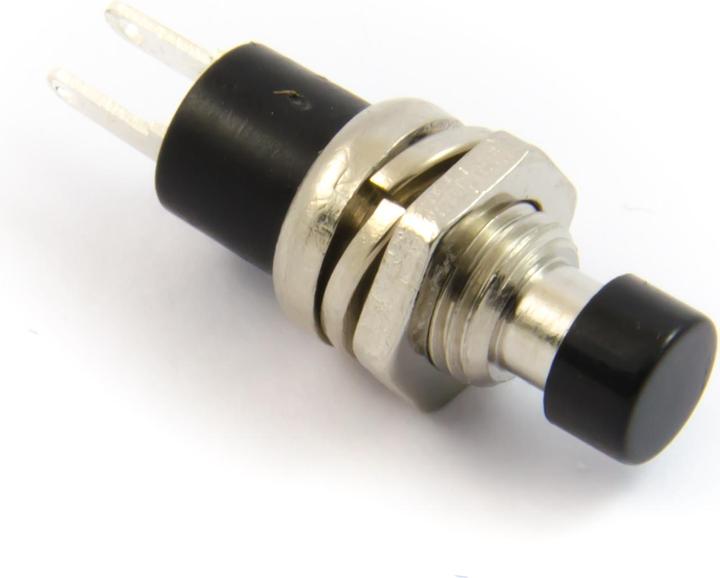

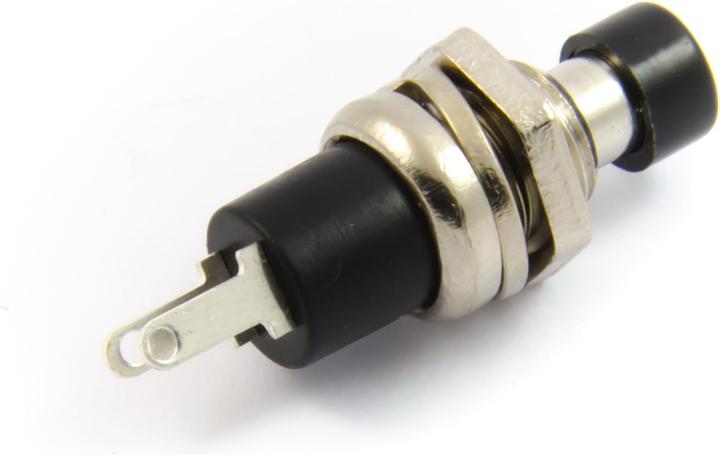

Purecrea Flush-mounted push-button black 7mm 2P
Delivered tomorrow
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–
Colour3
Product details
This affordable push button/switch is perfect for your DIY Arduino projects. When you activate the pull-up resistor on an input of your Arduino, you can connect the button to this input and GND. When the button is not pressed, the signal is at 1; as soon as the button is pressed, the input drops to 0.
Be careful not to apply too much heat or solder for too long, as this can melt the plastic and destroy the button.
Technical details:
Material: Plastic / Zinc-coated metal
Switch contact: NO (Normally Open)
Connection: Soldering
Number of pins: 2
Maximum voltage: 50V
Maximum current: 0.5A
Hole diameter for installation: 7mm
Weight: 3.5g

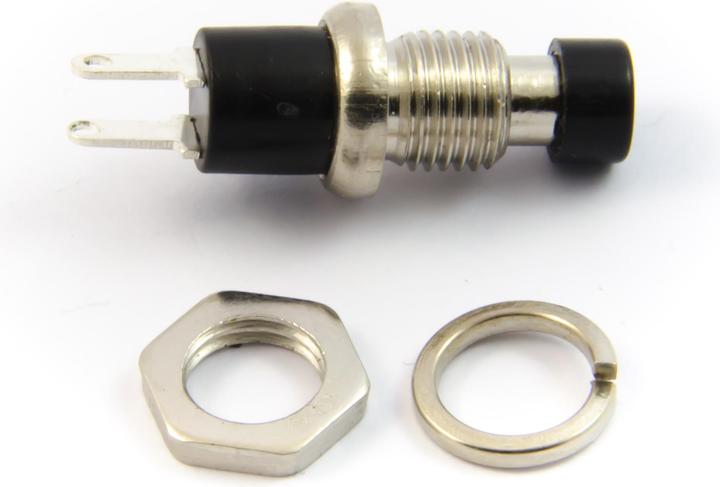

Delivery includes:
1x Black button
1x M7 nut
1x Spring washer.
Colour | Black |
Diameter | 7 mm |
Item number | 36133406 |
Manufacturer | Purecrea |
Category | Buttons + Switches |
Release date | 7.6.2023 |
Sales rank in Category Buttons + Switches | 120 of 17647 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic / Metal |
Number of poles | 2x |
Nominal voltage | 50 V |
Nominal current | 0.50 A |
Country of origin | China |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 0.29 |
Smart home | Not compatible |
Items per sales unit | 1 pcs. |
Scope of delivery | 1x M7 nut, 1x push-button black, 1x spring washer |
Diameter | 7 mm |
Specifications may include unverified machine translations.
