OEM Raspberry PI Output Extension Board

Currently out of stock
Free shipping starting at 50.–

Product details

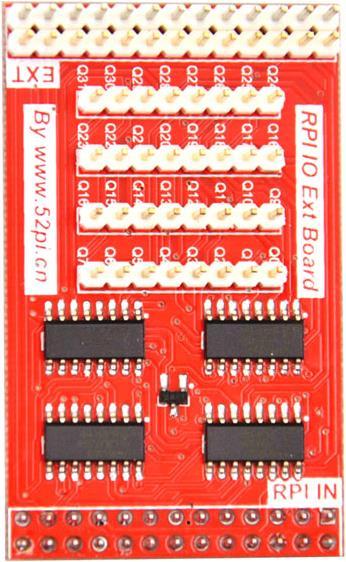

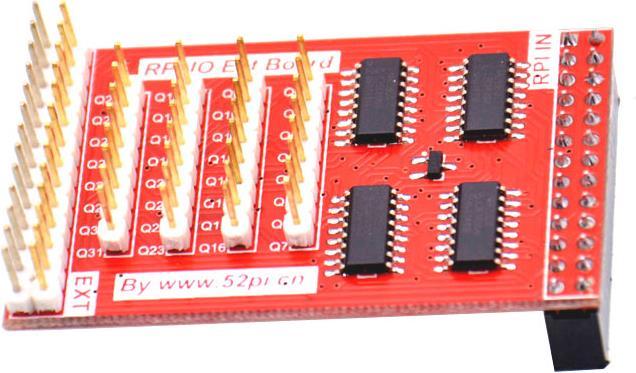

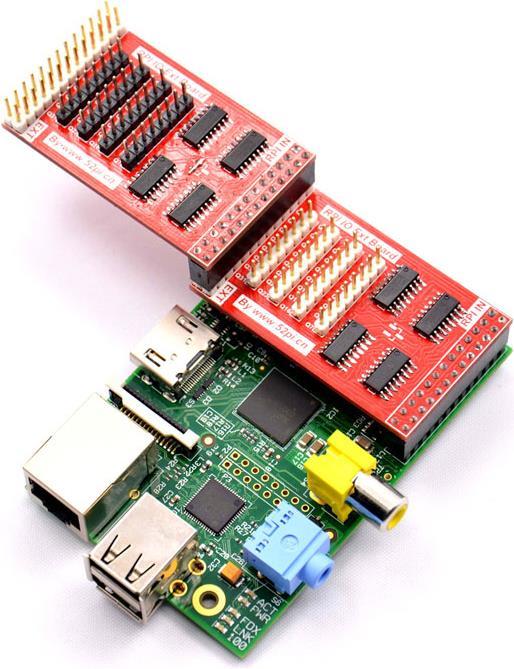

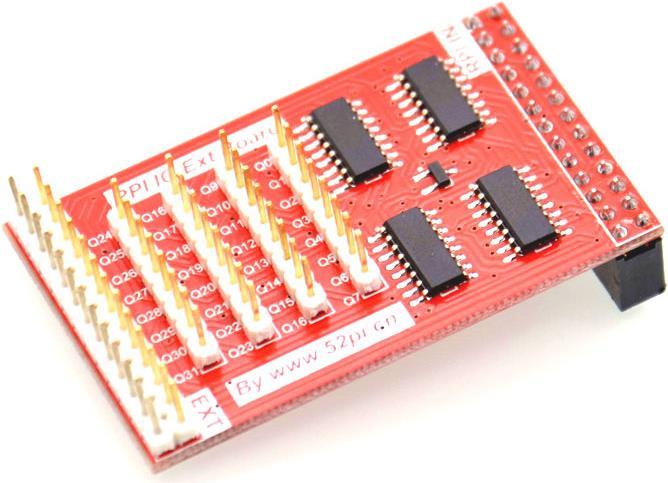

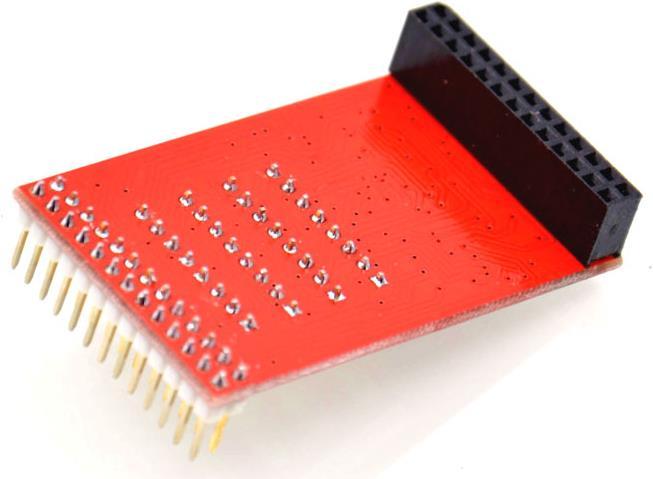

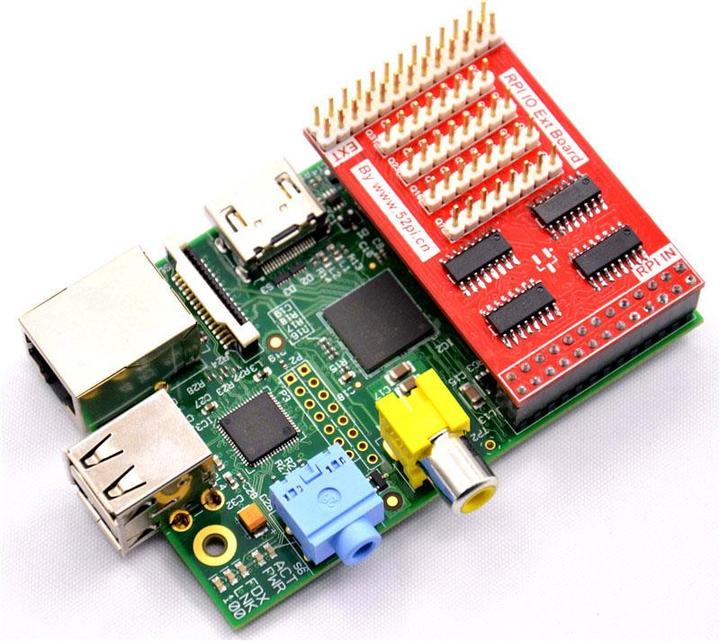

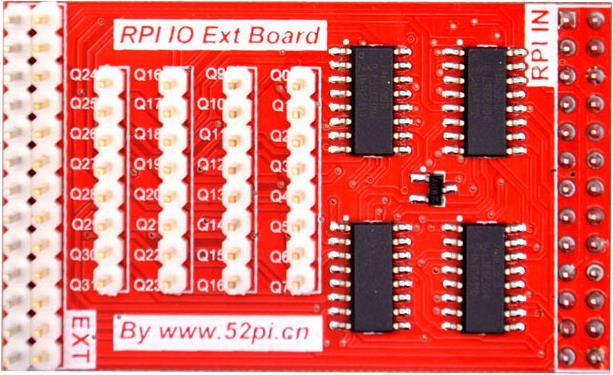

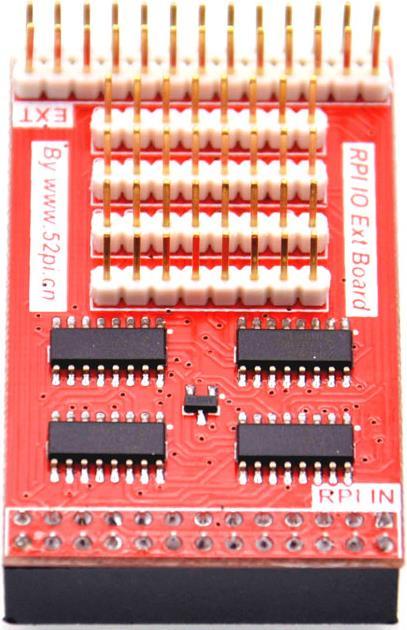

This module uses four 74HC595 chips to expand 32 output ports. The top of the module expands the outputs of the Raspberry Pi and can be cascaded with more output expansion modules for theoretically unlimited expansion.

Product Features:

  • Expands 32 outputs
  • Infinite connection for the same module
  • Uses wiringPi API

Ports:

  • Raspberry Pi 2X13 port
  • Raspberry Pi 2X13 cascade port
  • Q0-Q31 expanded output port

Product Parameters:

  • Working voltage: 2.4V-5V
  • IO voltage: 3.3V
  • Expanded 32 unidirectional IO
  • Connection through SPI
  • 100 MHz (typical) shift out frequency
  • 8-bit serial input
  • 8-bit serial or parallel output
  • Specified from -40°C to +85°C and from -40°C to +125°C.

Key specifications

Item number
5999035

General information

Manufacturer
OEM
Category
Electronics modules
Manufacturer no.
P00001207
Release date
22.11.2016
