Nixieclock QS30-1/SZ-8 Nixie Clock Module for Arduino (Arduino Compatible

QS30-1/SZ-8 Nixie Clock Module for Arduino (Arduino Compatible)

Introduction:

The Nixie tube, a product from the last century, has witnessed the evolution of electronic technology. Its unique display effects make it an unforgettable design. The Nixie tube is extremely rare on the market. This Nixie module is available in limited quantities.

The new version V2.0.0 no longer requires a 12V power supply!

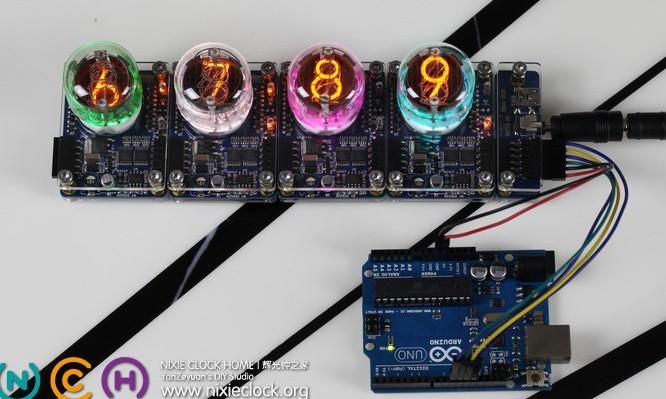

This Nixie module for Arduino allows for direct use of the Nixie tube. This classic Nixie tube combines a ceramic tube base, gold-plated PCB, and an RGB background LED. This module can be used in a variety of applications. It features an all-in-one design. Enhanced circuitry, drivers, and sockets are integrated. Multiple modules can be connected in series for custom needs. This makes controlling the Nixie modules much easier, especially for Arduino and other similar platforms. Users can focus on presentation and application without worrying about voltage management or connections. With 4 or 6 Nixie tubes, a classic and stylish clock is currently in vogue.

Specifications:

1. Chinese QS30-1(SZ-8/SW3-1) Nixie tube display;
2. New: Operating voltage DC5V;
3. Maximum operating current from external power supply: 100mA per module;

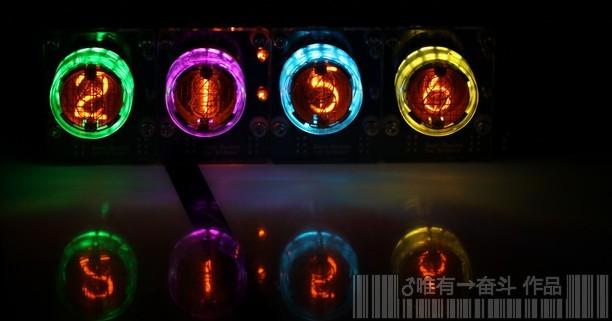

4. Embedded RGB backlighting;
5. Gold-plated circuit board;
6. Stackable;
7. Control interface: 4-wire SPI communication;
8. Size: 50x40x55mm;
9. Weight: 85g;.
