Niedax Strain relief

Niedax Cable Strain Relief ZF 175.250-90

Manufacturer: Niedax
Description: Strain relief
Internal dimension: 250 mm
Type: ZF 175.250-90
Accessory/Spare part type: Strain relief
Accessory: yes
Spare part: no

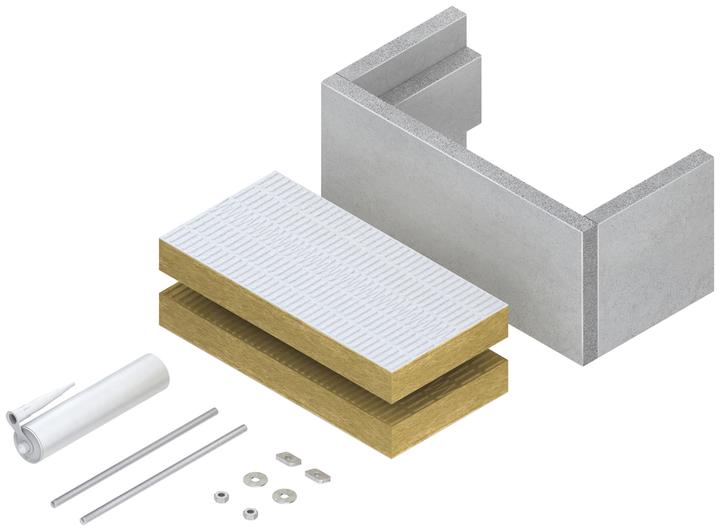

The set consists of a housing, a cartridge with fire protection coating, a labeling plate, and the mounting materials (2 pieces of M10X300 threaded rods, corresponding hex nuts, and sliding nuts for C-profile rails with a slot width of 16 mm, as well as washers). For mounting on C-profile rails 2986 or on the rung of the STM 60 ladder tray, the sliding nuts must be ordered separately. The mounting can be done either directly in the ground or with sliding nuts in the C-profile rail.

For vertical cable routing in cable systems with integrated functional integrity according to DIN 4102-12 for functional integrity classes E30, E60, or E90 during individual installation (screw distance clamps or bracket clamps) or with ladder trays.

Maximum vertical distance of the strain relief: every 3500 mm
Maximum cable weight: 20 kg/m

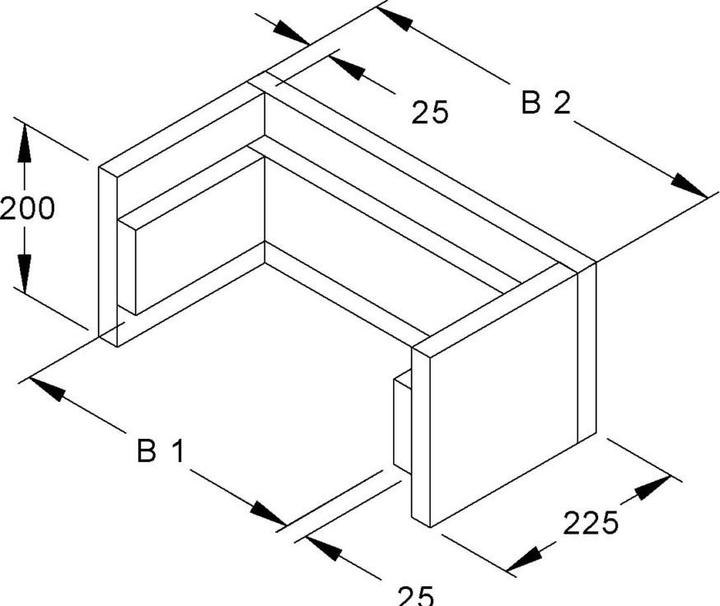

Dimensions (approximate): H x W x D: 200 x 350 x 225 mm (external)
Clear internal dimension: 250 mm
Housing material: lightweight concrete, fiberglass reinforced, cement-bound, mineral fiber
EAN: 4013339193868.
