Niedax Gripple with trapeze hook GAT-2/3 EXP ** and express fastener GAT-2/3 EXP

Niedax Gripple GAT-2/3 EXP
Manufacturer: Niedax
Description: Gripple with trapeze hook
Type: GAT-2/3 EXP
End fastening: other
With decorative covering: no
Cable length: 3 m
Cable diameter: 2 mm
Cable material: steel
Surface protection: galvanized
Material of locking device/tensioner: steel
Permissible load capacity: 45 kg
Suitable for function maintenance: no

Niedax Gripple GAT-2/3 EXP: additional details

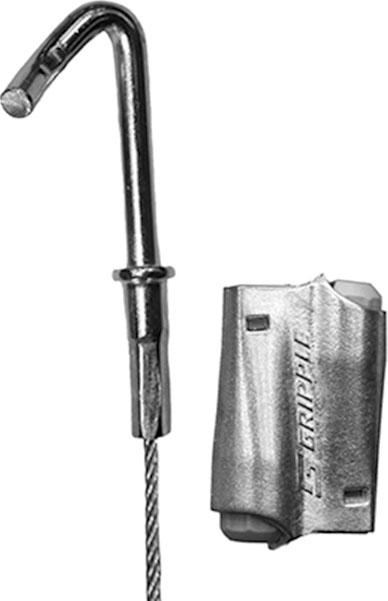

Gripple trapeze hook and express fastener, quick hanging system, versatile and ready to use, for attachment to trapezoidal sheet ceilings. The load capacity specifications apply only with adequate anchoring to the supporting substrate and proper installation. Ensure that the selected end fitting is suitable for the respective support structure and follow the manufacturer's recommendations for all installations.

Set includes:
1 cut wire rope with trapeze sheet hook
1 self-locking Gripple for quick fastening with express fastener (integrated adjustment system)

Dimensions (approx. measurements)
Rope diameter: 2 mm
Rope length L: 3 m
Hook diameter: 5 mm
Permissible load capacity F: 0.45 kN (5-fold safety against breakage calculated on a 2 mm trapezoidal sheet)
Material of wire rope: steel, galvanically galvanized.
