Metz Connect BTR E-DAT patch panel 24x8 (8) 1U modular LSA Cat. 6 patch panel Class Ea Link 500 MHz
free shipping

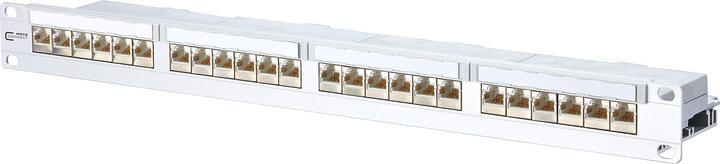

19 inch 1RU frame made of silver anodized aluminum with 24 individually shielded RJ45 jacks. Certified to GHMT Cat.6 12C-de-embedded. Compliance with class EA to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09. Tested: Link up to 500 MHz. Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT. Four module housings, made of zinc die-casting, with six RJ45 jacks each. Wire pairs can be led to the LSA terminal without untwisting the pair. Connection of 2 to 4-pair data lines to LSA insulation displacement connectors (AWG 22-24) conductor colors marking to TIA/EIA 568A. Label window for enclosed identification labels. Optional strain relief using cable ties. Modules connected by means of grounding rail, including 30 cm grounding cable.
Server accessory type | Patch panel |
Item number | 10173740 |
Manufacturer | Metz Connect |
Category | Server accessories |
Manufacturer no. | 130856-E |
Release date | 29.11.2018 |
Colour | Silver |
Exact colour description | Aluminium |
Server accessory type | Patch panel |
Storage capacity | 0 MB |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 19-inch 1U support made of silver anodised aluminium, with 24 individually shielded RJ45 sockets |

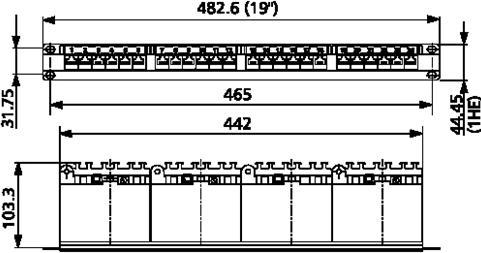

Length | 10.33 cm |
Width | 48.26 cm |
Height | 4.38 cm |
Weight | 1930 g |
