MeanWell Power Supply Switch Mode 5V 50W

Output voltage: 5V DC
Output current: 10A
Rated power: 50W
Input voltage: 120 to 373V DC, 85 to 264V AC
Mounting type: Cabinet mounted
Enclosure type: Closed
Length: 99mm
Width: 82mm
Depth: 30mm
Hum and noise voltage: 80mV SS
Load regulation: ±1%
Mains regulation: ±0.5%
Temperature min: -30°C
Temperature max: +70°C
Operating time: 645kH

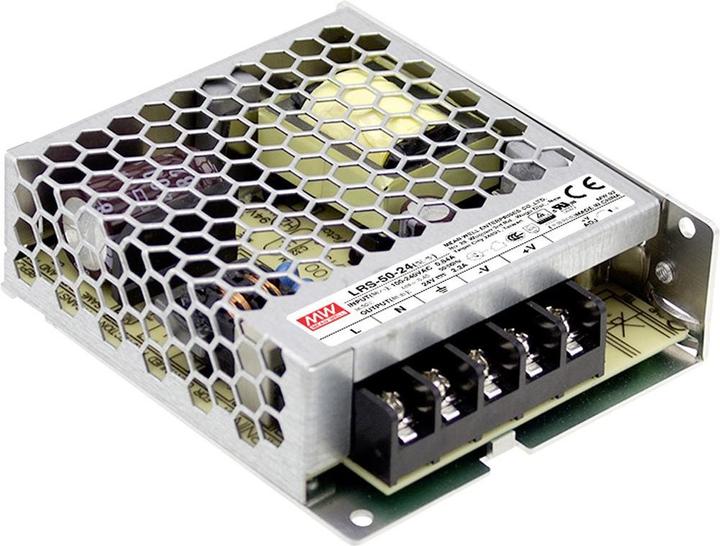

This is a Mean Well LRS switch mode power supply with a 50W output. The LRS-50 series of sealed 50W power supplies are low-profile and highly efficient products. Designed with a metallic grid and air convection for optimum heat dissipation, it is suitable for demanding applications. The LRS-50 series is engineered for high efficiency and offers extremely low power consumption at zero load. It features 5-G vibration resistance, making it suitable for installation in particularly challenging environments.

Features and benefits include universal AC input with a 5-second overvoltage protection input of 300V AC, up to 89% efficiency, and less than 0.2W power consumption at zero load. It also provides free air convection cooling.

Typical applications include industrial automation and control equipment, mechanical and electrical equipment, and household appliances.
