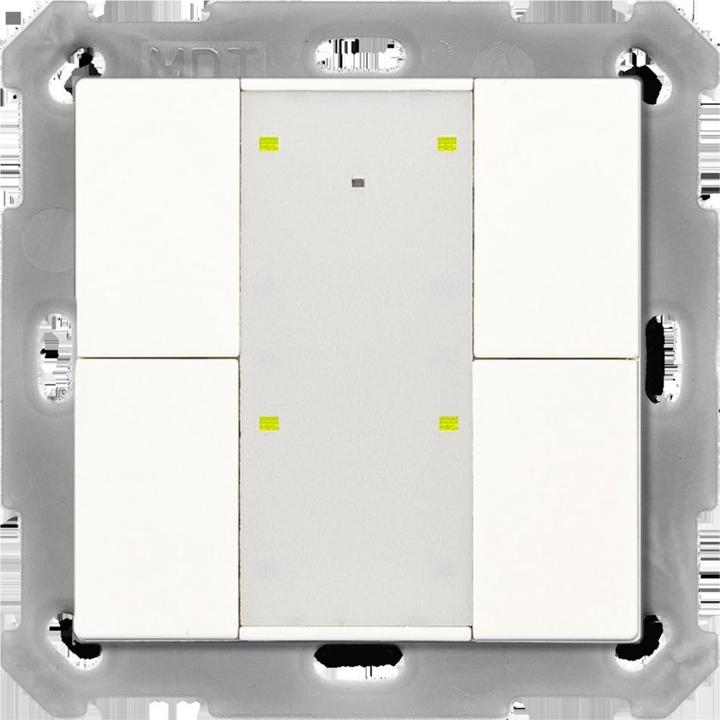

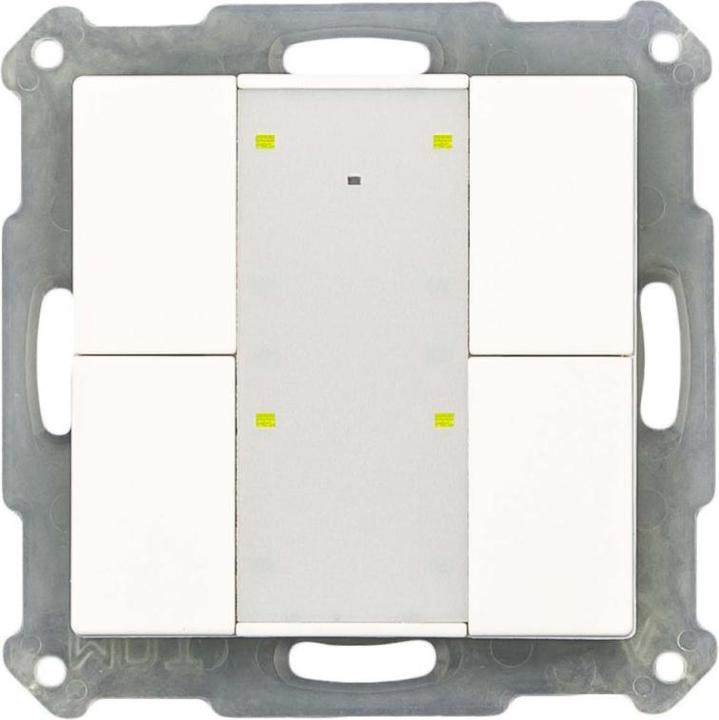

MDT RF-TA55A4.01 KNX RF+ radio push-button

MDT technologies KNX RF+ Wireless Switch Plus RF-TA55A4.01

Manufacturer: MDT technologies
Description: KNX RF+ Wireless Switch Plus 4-fold with actuator, pure white glossy
Type: RF-TA55A4.01

Bus system KNX: no
Bus system KNX Wireless: yes
Bus system Wireless Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional wireless: no

Mounting type: Flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of activation points: 4
Number of buttons: 4
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no

Material: Plastic
Material quality: Thermoplastic
Surface protection: other
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Minimum depth of device box: 49 mm

Additional details: KNX RF+ Wireless Switch Plus 4-fold with actuator, 55 mm, pure white glossy. Version with 4 buttons and LEDs for operation/status display and orientation light. Current max. 10 A with resistive load, 10 A with 14 µF / 2 electronic ballasts. For operation within the EU, 868 MHz. KNX RF+ protocol in system mode. Commissioning from ETS 5. Suitable for 55 mm switch programs. The buttons can be freely configured as button pairs or single buttons. Normally open and normally closed operation, adjustable button press duration. Values can be sent, forced guidance and switching commands adjustable. Short/long button press with 2 objects. Single and double button operation for dimmer/blind functions. Operates as a 2-fold switching actuator or 1-fold blind actuator. Connection via MDT KNX RF+ wireless line coupler. Central labeling field with cover film for individual labeling. As a replacement for conventional series switches. For modernization without laying KNX bus cables. Power supply 230 V AC. Installation in switch box with included mounting ring. EAN: 4251916148621.
