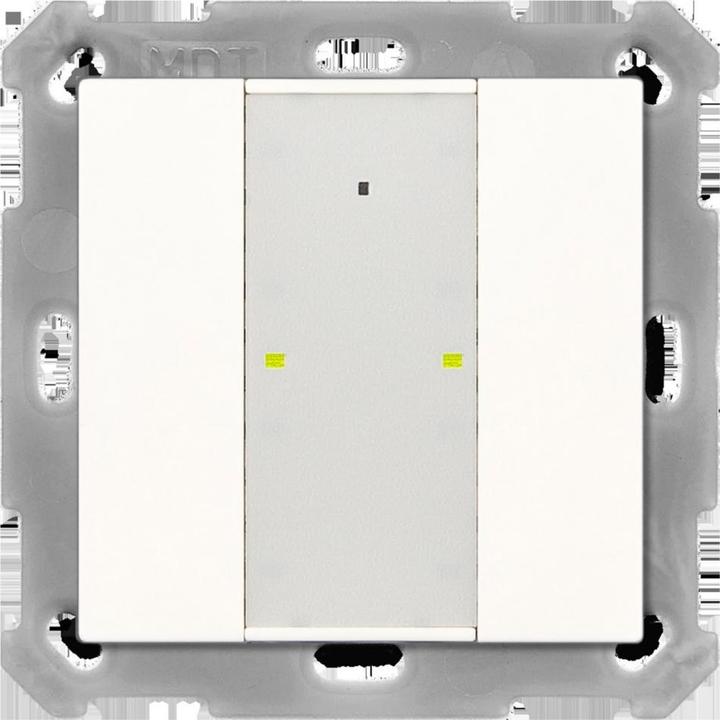

MDT RF-TA55A2.01 KNX RF+ radio push-button

MDT technologies KNX RF+ Wireless Switch Plus RF-TA55A2.01

Manufacturer: MDT technologies
Description: KNX RF+ Wireless Switch Plus 2-fold with actuator, pure white/glossy
Type: RF-TA55A2.01

Bus system KNX: no
Bus system KNX-RF: yes
Bus system Wireless Bus: no
Bus system LON: no
Bus system Powernet: no
Other bus systems: none
Bidirectional wireless: no

Mounting type: Flush-mounted
With theft/dismantling protection: no
With bus coupling: yes
Number of activation points: 2
Number of buttons: 2
Power consumption: 0.3 W
With LED display: yes
With labeling field: yes
With display: no

Material: Plastic
Material quality: Thermoplastic
Surface protection: other
Surface finish: glossy
Color: white
RAL number (similar): 9010
Transparent: no
With room thermostat: no
With infrared sensor: no
Protection class (IP): IP20
Min. depth of device box: 49 mm

Further details:
KNX RF+ Wireless Switch Plus 2-fold with actuator, 55 mm, pure white glossy. Version with 2 buttons and LEDs for operation/status indication and orientation light. Current max. 10 A at resistive load, 10 A at 14 µF / 2 electronic ballasts. For operation within the EU, 868 MHz. KNX RF+ protocol in system mode. Commissioning from ETS 5. Suitable for 55 mm switch programs. The buttons can be freely configured as a pair or individual buttons. Normally open and normally closed operation, adjustable button press duration. Values can be sent, forced guidance and switching commands adjustable. Short/long button press with 2 objects. Single and double button operation for dimmer/blind functions. Operates as a 2-fold switching actuator or 1-fold blind actuator. Connection via MDT KNX RF+ wireless line coupler. Central labeling field with cover film for individual labeling. As a replacement for conventional series switches. For modernization without laying KNX bus cables. Power supply 230 V AC. Installation in switch box with supplied mounting ring.
