MDT Button

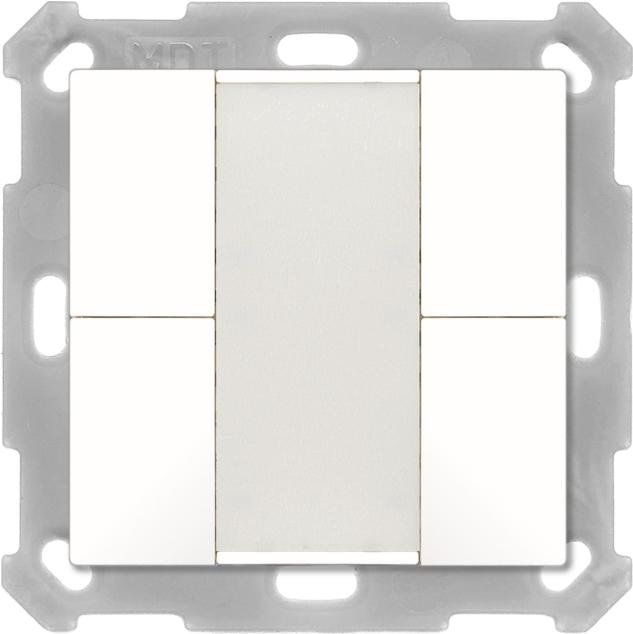

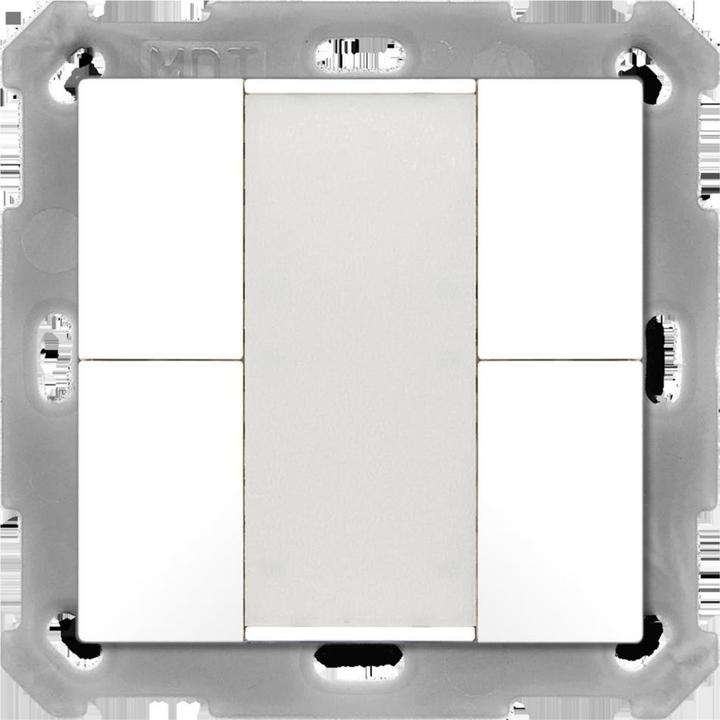

MDT technologies push-button 55 4-gang, pure white BE-TA5504.G2

Manufacturer: MDT technologies
Designation: Push-button 55 4-gang, pure white glossy
Type: BE-TA5504.G2
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Flush-mounted
With anti-theft/disassembly protection: No
With bus coupling: Yes
Number of actuation points: 4
Number of buttons: 4
With LED display: No
With labelling field: Yes
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface finish: Glossy
Colour: White
RAL number (similar): 9010
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of appliance box: 35 mm

Further details: Push-button 55 4-gang, pure white glossy. Version with 4 buttons. Suitable for 55 mm switch ranges such as GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7, or JUNG A 500, A PLUS, A Creation, AS 500, A550, A FLOW, or MERTEN 1M, M-Smart, M-Plan, M-Pure. Centre title block with cover foil for individual labelling. The buttons can be customised as button pairs or individual buttons. One- and two-button operation for switching, dimming, blinds, values. Innovative group control with long/extra-long button press. Switch values/scenes with up to 4 values. Short/long button press with 2 objects. 4 logic blocks. Installation in switch box with supplied support ring. Integrated bus coupling unit.
