MDT Button

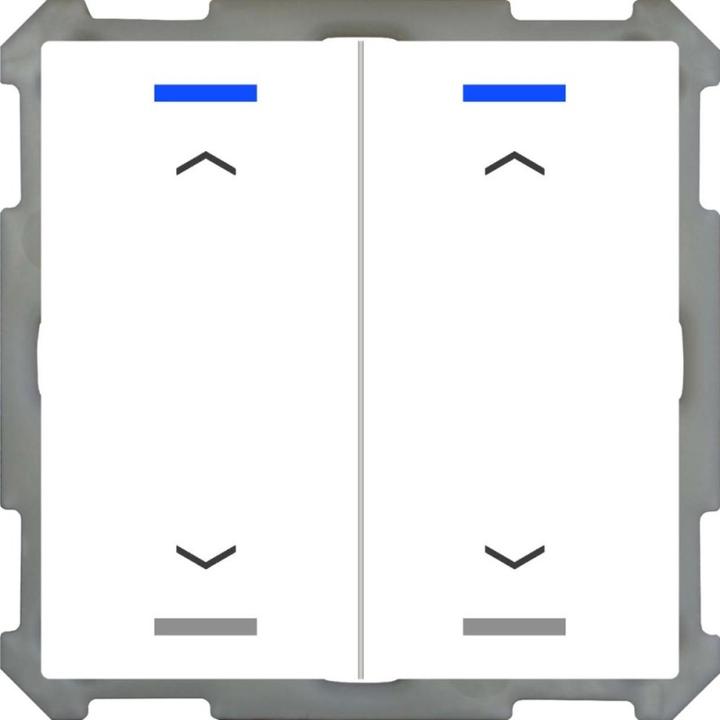

MDT technologies pushbutton light 63 2-fold BE-TAL6302.A1

Manufacturer: MDT technologies
Designation: Pushbutton light 63 2-fold RGBW, studio white, glossy
Type: BE-TAL6302.A1
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: Flush-mounted
With theft/demounting protection: No
With bus coupling: Yes
Number of actuating points: 4
Number of buttons: 2
With LED display: Yes
With labelling field: No
With display: No
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Finish: Glossy
Colour: White
RAL number (similar): 9016
Transparent: No
With room thermostat: No
With infrared sensor: No
Protection class (IP): IP20
Min. depth of device box: 35 mm

Further details:
Pushbutton light 63 2-fold, RGBW, studio white glossy, blind. Version with up/down symbol and 2 button pairs / 4 button surfaces. Integrated bus coupling unit. Suitable for 63 mm switch ranges, e.g., Busch-Jaeger future linear, solo, carat, and Busch-axcent. New multiple touch function sends up to 4 values/DPTs to the same or different objects. Innovative group control with long/extra long button press. The buttons can be freely set as a button pair or individual buttons. One- and two-button operation for switching, dimming, blinds, and values. Switching values/scenes with up to 4 values. Short/long push-button operation with 2 objects. Two RGBW status LEDs per button pair. LED brightness controllable via day/night or brightness object. 4 logic blocks. Integrated bus coupler.
