MDT Button
Colour8
In Detail

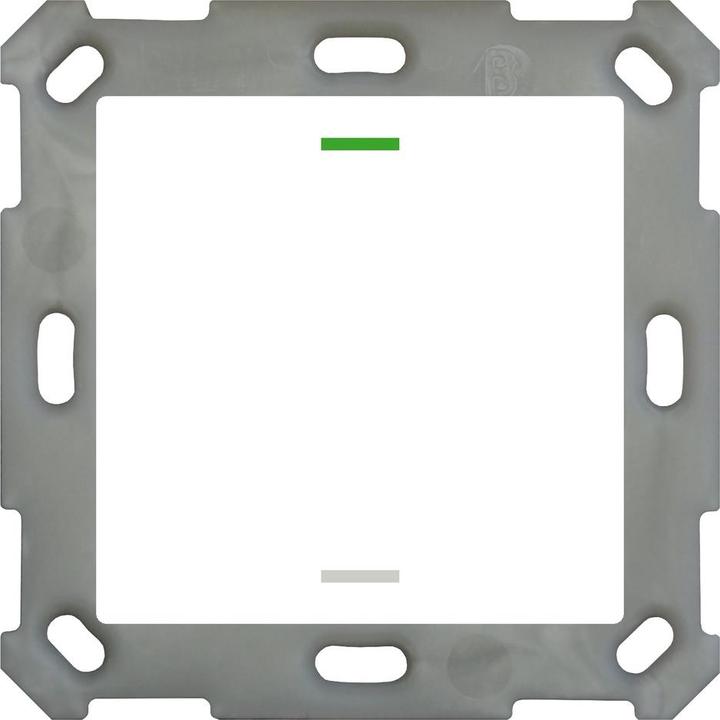

MDT technologies Taster Light 55 1-gang BE-TAL55T1.01
Manufacturer: MDT technologies
Description: Taster Light 55 1-gang RGBW, pure white glossy, neutral
Type: BE-TAL55T1.01
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Activation Points: 2
Number of Buttons: 1
Power Consumption: 0.3 W
With LED Indicator: yes
With Labeling Field: no
With Display: no
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: other
Surface Finish: glossy
Color: white
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm
MDT technologies Taster Light 55 1-gang BE-TAL55T1.01: further details
KNX Taster Light 55 1-gang, RGBW, temperature sensor, pure white glossy, neutral. Neutral version with 1 button pair / 2 button surfaces and temperature sensor. Suitable for 55 mm switch programs such as MDT Series 55 or GIRA Standard 55, E2, E22, Event, or BERKER S1, B3, B7 or JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW or MERTEN 1M, M-Smart, M-Plan, M-Pure. The buttons can be freely configured as a button pair or single buttons. Single and double button operation for switching, dimming, blinds, values. Switching between up to four values or scenes. Short/long button press with 2 objects. Innovative group control with long/extra long button press. Multi-tap function sends up to 4 values to the same or different objects. Two RGBW status LEDs per button pair. LED brightness can be controlled via day/night or brightness object. 4 logic blocks. Installation in switch box with included mounting ring. Integrated bus coupler.
