Product details

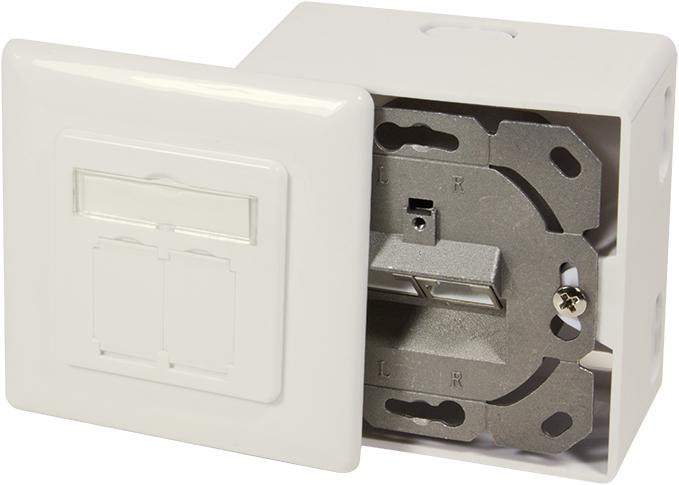

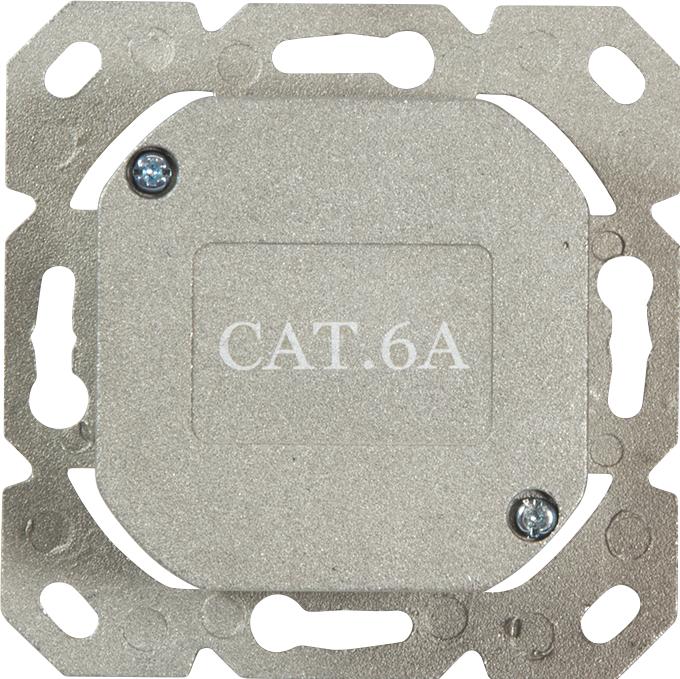

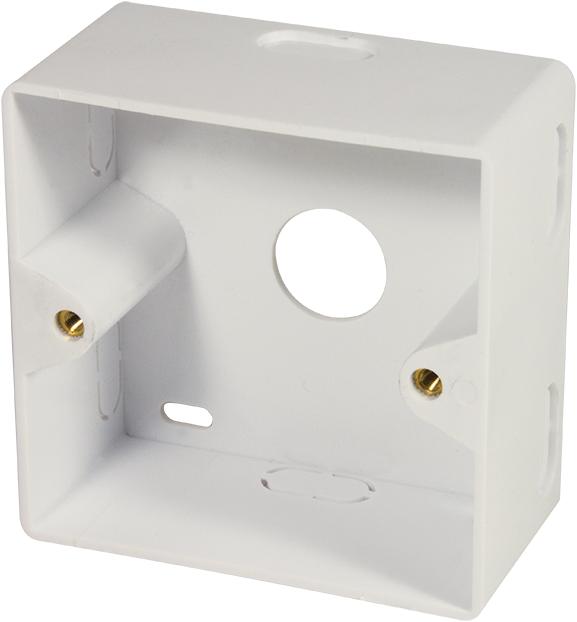

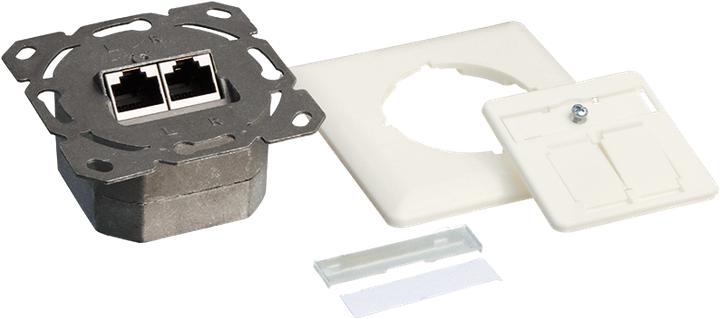

Cat.6A network socket UP+AP 2xRJ45 shielded, pure white. Specified up to 500 MHz, this outlet is suitable for all data transmissions up to 10 Gigabit Ethernet including PoE and PoE+. The sturdy zinc die-cast housing with combined shield contact and strain relief is suitable for flush-mounting, surface-mounting or cable duct mounting, the surface-mounting frame is included in the scope of delivery. This universal box is therefore suitable for all Cat.5, Cat.6 and Cat.6A cabling.
Exact colour description | Pure white, similar to RAL 9010 |
Socket type | RJ45 |
Number of cans | 2x |
Area of use | Inside |
Mounting type | Finery, Flush-mounted |
Documents | Technical data sheet.pdf |
Item number | 12770321 |
Manufacturer | LogiLink |
Category | Sockets |
Manufacturer no. | NP0124 |
Release date | 20.2.2020 |
Sales rank in Category Sockets | 28 of 8485 |
Colour | White |
Exact colour description | Pure white, similar to RAL 9010 |
Material group | Metal |
Material | Metal |
Socket type | Network socket |
Socket type | RJ45 |
Number of cans | 2x |
Nominal current | 6 Ah |
Area of use | Inside |
Mounting type | Finery, Flush-mounted |
Additional properties | Angled |
Transmission type | STP |
Country of origin | China |
CO₂ emissions | 24.93 kg |
Climate contribution | CHF 0.45 |
Width | 8 cm |
Height | 3.88 cm |
Weight | 248 g |
Length | 8.50 cm |
Width | 8.50 cm |
Height | 6.50 cm |
Weight | 203 g |
