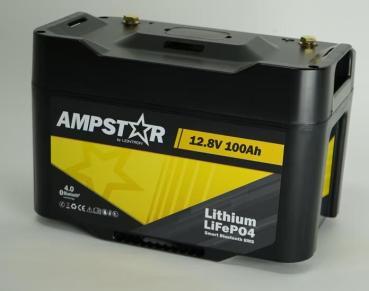

Liontron Lithium Versorgerbatterie 12V 100Ah

AMPSTAR by Liontron LiFePO4 – Flexible installation in any mounting situation thanks to intelligent housing design

Liontron presents AMPSTAR, the new brand for powerful, cost-effective LiFePO4 consumer batteries. The 12.8 V 100Ah battery impresses not only with its lightweight and compact size: the new AMPSTAR housing with DINFLEX RAIL, SYSMOUNT360, and SECUSTACK offers a mounting and installation concept that is thoughtful and adaptable. This results in outstanding design advantages for installing the consumer battery: the DINFLEX RAIL makes the AMPSTAR battery compatible with DIN rail mounting locations, which are standard for starter batteries. SYSMOUNT360 is AMPSTAR's integrated securing concept, as all side surfaces are designed to be included in the securing system – with strategically placed securing points at critical locations. SECUSTACK allows for mechanical stacking, with a form-fitting connection between the base and the lid for a secure bond.

Nominal capacity: 100Ah / 1280Wh
Operating voltage range: 11.0 .. 14.6V
Nominal voltage: 12.8V
Cycle life: 8000 at 0.5C at 80% DoD
Charging characteristic: CCCV / IU
Final charging voltage: 14.2 – 14.6V
Maintenance charge: 13.5 – 13.8V
Recommended max. charging current: 50A
Max. charging current: 150A continuous
Discharge current: 150A
BMS: Integrated Battery Management System, monitoring via Bluetooth 4.0 with smartphone app
Protection class: IP65
Connection: M8
Pole arrangement: Positive pole on the left
Warranty: 5 years manufacturer's warranty
Weight: 10.8 kg
Dimensions (L x W x H) in mm: 290 x 175 x 195 (without connection screws).
