kaiserkraft Cable bridge, large

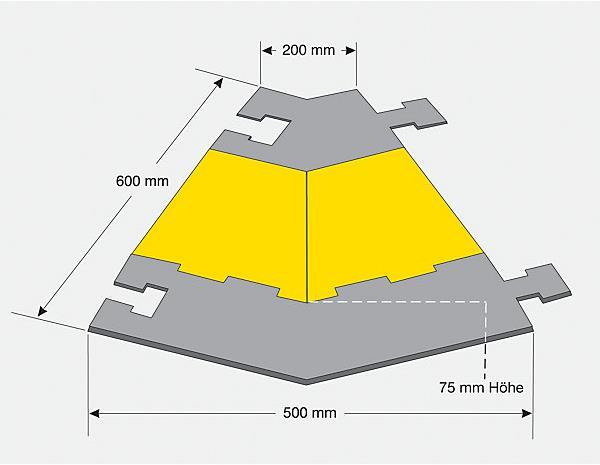

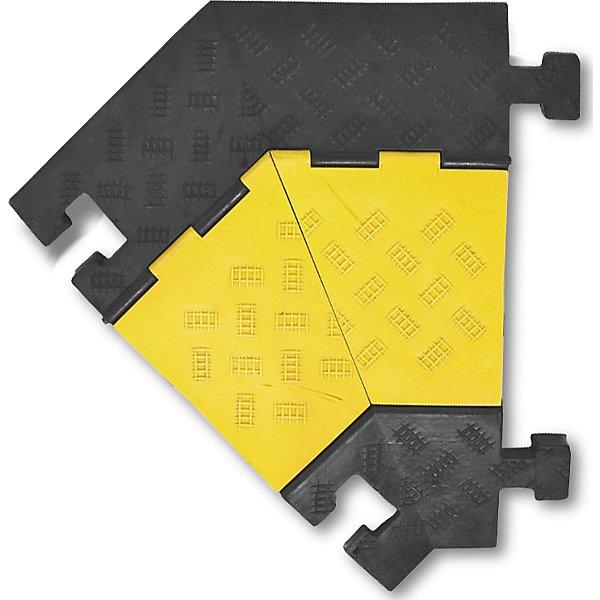

Cable bridge, height 75 mm, angle piece 45°, dimensions LxW 600 x 500 / 200 mm, left side. Safety through slip-resistant surface. Signal visibility with yellow plastic cover. Load capacity up to an axle load of 12 tons. Expandable with a spring/groove system. Features three cable ducts.

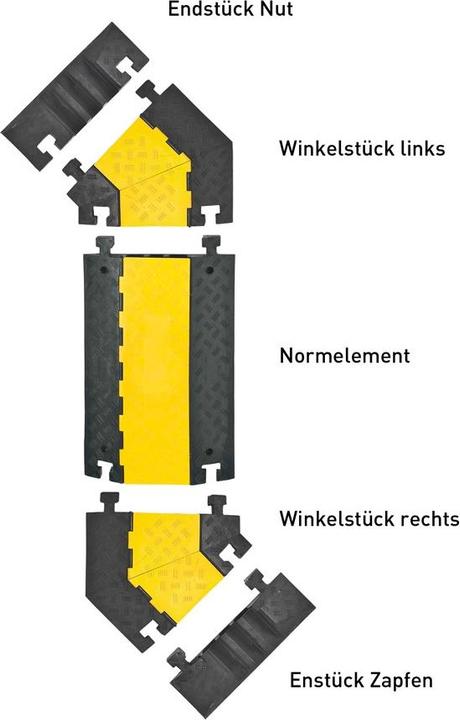

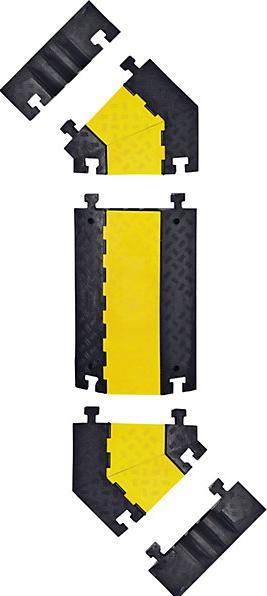

The cable bridge provides reliable protection for cables, hoses, and pipes in professional use. It has a well-thought-out modular system with standard elements, angle pieces, and end pieces that allow for flexible expansion. Additionally, it is compatible with wheelchair ramp systems. The cable bridge is designed for occasional heavy traffic and can withstand an axle load of up to 12 tons. The recommended crossing speed is 5 km/h. Its robust construction is made from a special recycled hard rubber mixture that guarantees durability and resilience.

High visibility is ensured by the yellow cover made of high-quality plastic. The ribbed surface is slip-resistant, providing extra safety. The crossing height is 75 mm, making the cable bridge ideal for use on roads and construction sites. Integrated dowel sockets allow for permanent fixation. Thanks to the spring/groove system, the individual elements can be expanded as needed, allowing for endless assembly possibilities. The cable bridge features three cable ducts with the following dimensions: two channels measuring 68 x 50 mm each and one channel measuring 55 x 50 mm. A protective cover and a practical carrying handle facilitate transport and handling. Angle elements at 45° are available for corners and curves.
