Kabelmeister

With the Y-splitter power cable from VARIA, you can quickly and easily connect two devices with a C14 connector to the power grid via a protective contact plug. Sufficient power outlets are often in short supply in many applications, which can lead to the necessity of an additional power strip. With the VARIA Y-cable, you can avoid the need for an extra power strip and operate two devices from a single outlet. For example, you can use two monitors or one monitor and one PC with just one protective contact outlet.

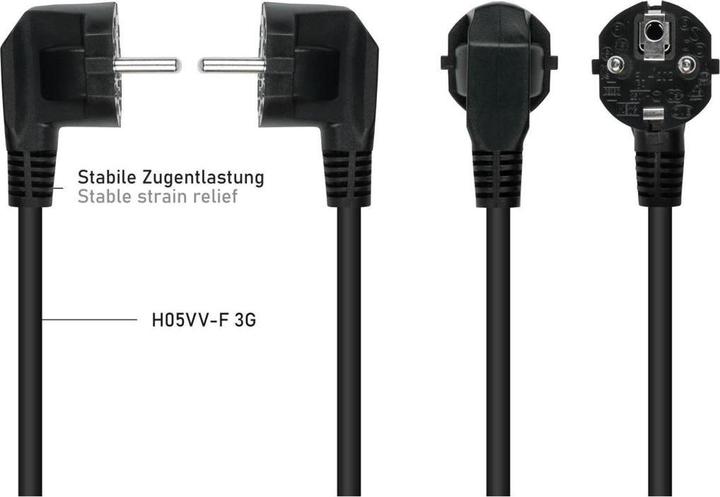

You can trust in the proven VARIA quality. For our cold device cables, we only use high-quality and VDE-certified H05-VV-F cable material. To enhance durability, strain reliefs are attached to the connectors, providing additional protection and stability. The use of modern production facilities, standardized processes, and high-quality materials ensures consistently high processing quality of the products.

Technical specifications:
- Connector 1: Protective contact plug type E+F (CEE 7/7, angled)

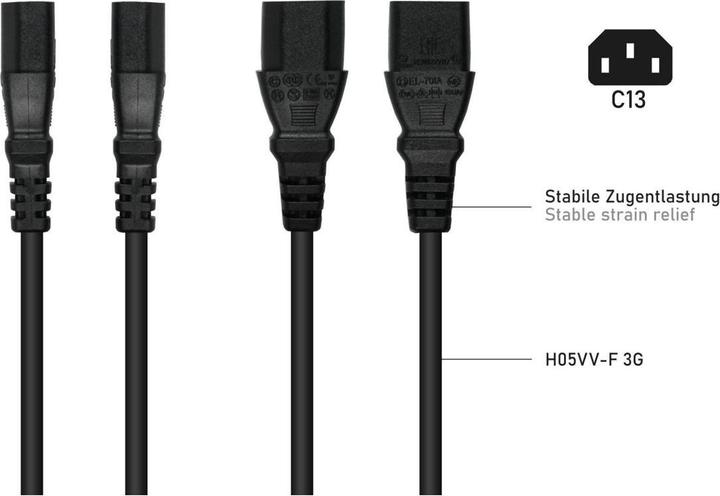

- Connector 2: 2x IEC 60320 C13 cold device socket (straight)
- Cable: H05-VV-F (3G)
- Conductor material: Copper
- Conductor cross-section up to Y-split: 1.00 mm²
- Conductor cross-section from Y-split: 0.75 mm²
- Number of conductors: 3
- Max. current carrying capacity C13: 10 A / 250 V each
- Max. total current carrying capacity: 16 A / 250 V
- Insulation material: PVC
- Sheath material: PVC

Color: Black
Length from protective contact plug to Y-split: 1.2 m / 120 cm
Length from Y-split to C13 connection: approximately 0.8 m / 80 cm each

Quality product from VARIA - If it's a cable, it should be from VARIA!

Note:
Please observe the maximum current carrying capacity of the cable and ensure it is not exceeded.

Product features:
- Quality product from VARIA - If it's a cable, it should be from VARIA!
- Protective contact on 2x C13 Y-extension cable - 2m (1.20m + 2x 0.80m).

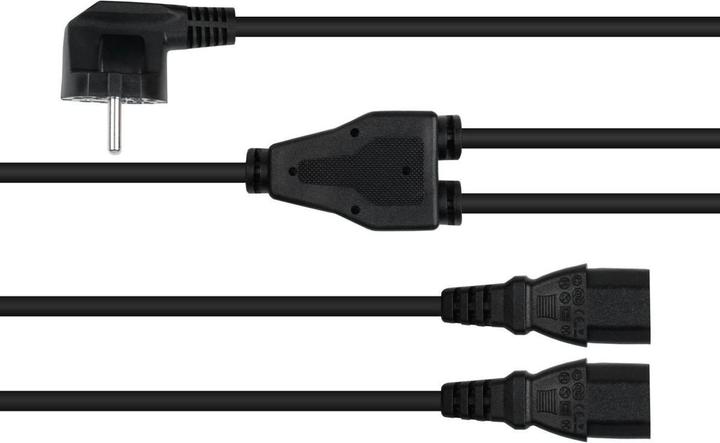

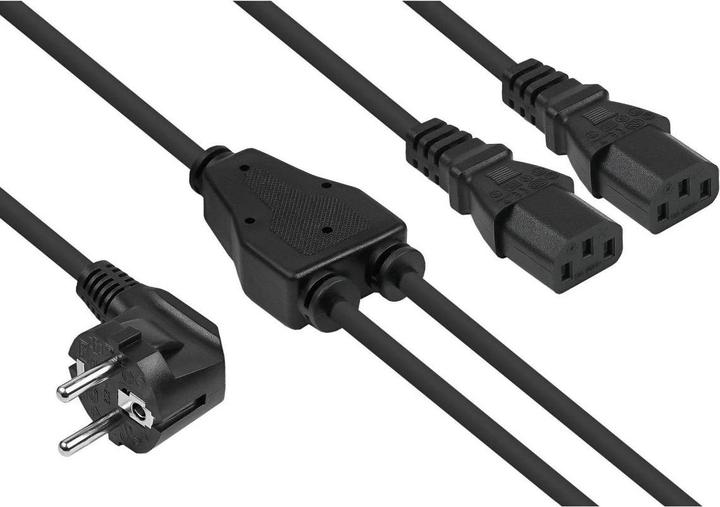

Actual product image Kabelmeister Y mains cable earthing contact plug type E+F (CEE 7/7, angled) to 2x socket C13, black (2 m)
