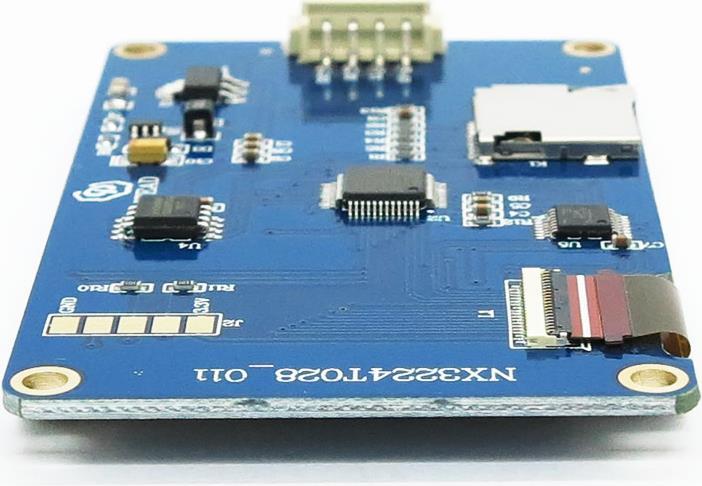

ITead Studio Nextion NX3224T028 Generic 2.8" HMI LCD Touch Display
Intelligent, programmable HMI display, specially developed for
the Arduino
The Arduino is a powerful board, but usually not
powerful enough to display a lot of data or a GUI on one display
to represent.
the Arduino
The Arduino is a powerful board, but usually not
powerful enough to display a lot of data or a GUI on one display
to represent.
It is precisely this gap that Itead fills with her nextion
Displays.

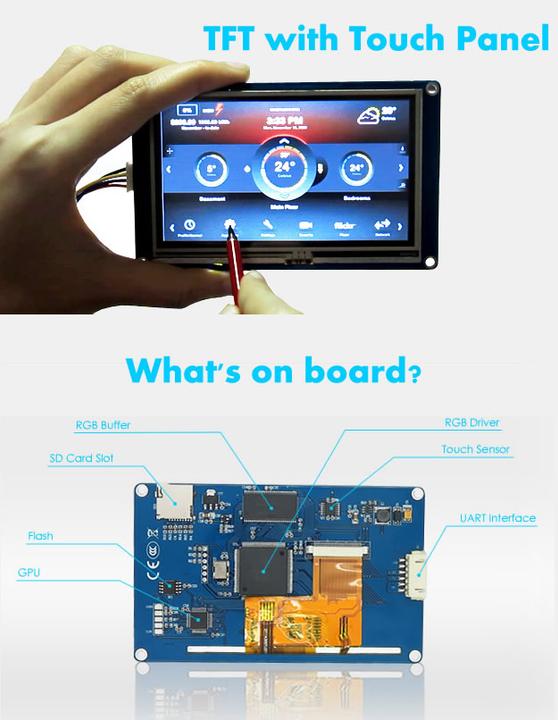

The Nextion displays are intelligent displays with touch, flash
memory and a serial interface. With the freely available
Nextion-GUI for Windows, the necessary data such as pictures or
animations are loaded directly onto the display and can be combined with actions such as
buttons. The Arduino, or some other microprocessor.
now only the relevant data has to be transmitted via serial port with the
Replace the display, e.g. send measurement data to the display or
Touch on a button is received. The display is completely controlled by the
Nextion. Of course, the Nextion ads can also be
the Raspberry Pi (all models)

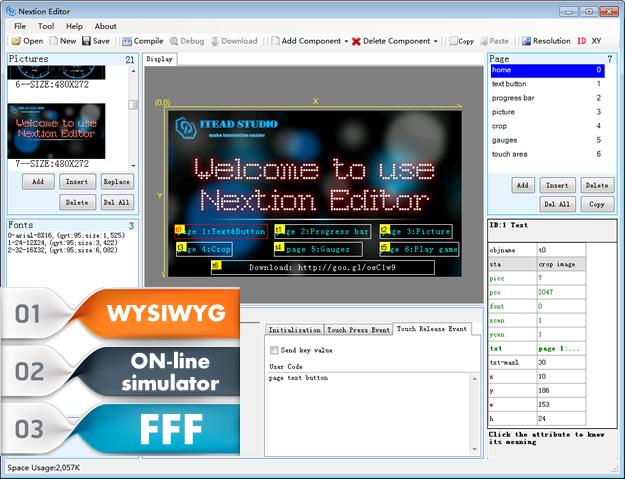

Ithead provides with the Nextion Editor a powerful tool for
available to create cool GUIs quickly and easily. The Editor
is, like extensive English descriptions, freely available.
Technical data:
* Screen diagonal 2.8"
* Resolution 320 x 240 pixels
* 65k colours
* TFT display with integrated touch (resistive)

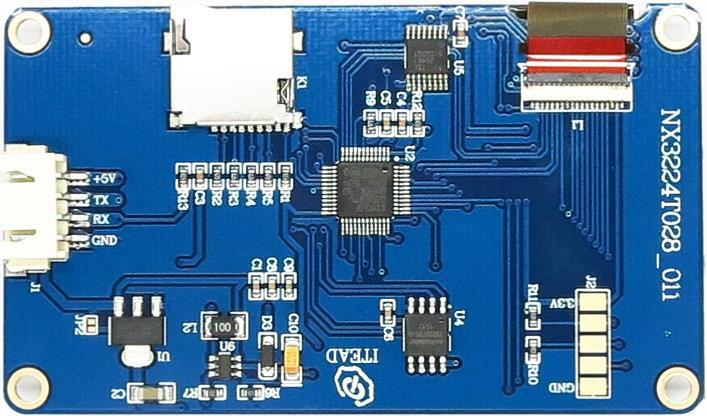

* TTL 4-pin interface
* 4M Flash memory
* microSD card reader for firmware upgrades
* Visible area: 57.6mm x 43.2mm
* Size: 85mm x 49.8mm
* Brightness Adjustable from 0 - 180 nit, in 1% steps
* Current consumption 64mA
* Compatible with Arduino, Raspberry Pi and many more
* can be fed directly from the microprocessor, no external
Power source is required.

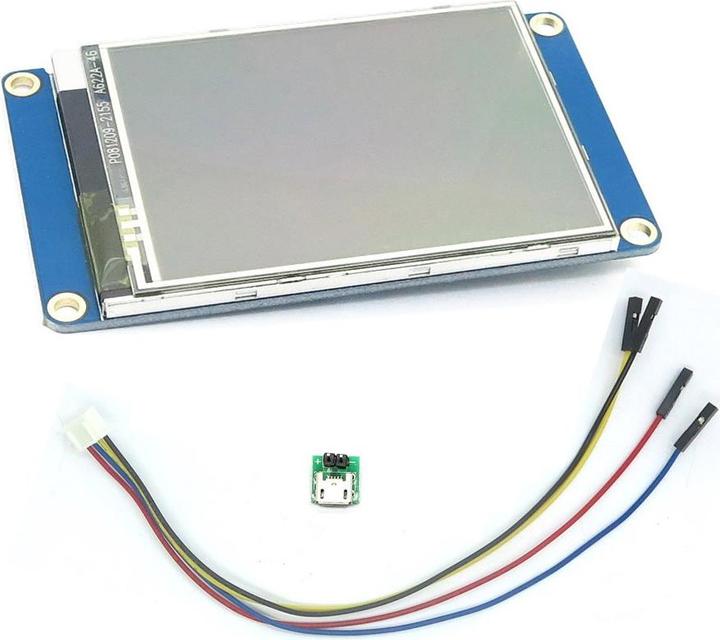

Scope of delivery:
* Nextion display 2.8"
* Adapter cable (TTL)
* USB power adapter PCB
Left:
* Nextion wiki [1]
* Nextion User Manual (online, English) [2]
Left:
------
[1] http://wiki.iteadstudio.com/Nextion_HMI_Solution
[2]
http://support.iteadstudio.com/support/discussions/topics/1000065323
Displays.
The Nextion displays are intelligent displays with touch, flash
memory and a serial interface. With the freely available
Nextion-GUI for Windows, the necessary data such as pictures or
animations are loaded directly onto the display and can be combined with actions such as
buttons. The Arduino, or some other microprocessor.
now only the relevant data has to be transmitted via serial port with the
Replace the display, e.g. send measurement data to the display or
Touch on a button is received. The display is completely controlled by the
Nextion. Of course, the Nextion ads can also be
the Raspberry Pi (all models)
Ithead provides with the Nextion Editor a powerful tool for
available to create cool GUIs quickly and easily. The Editor
is, like extensive English descriptions, freely available.
Technical data:
* Screen diagonal 2.8"
* Resolution 320 x 240 pixels
* 65k colours
* TFT display with integrated touch (resistive)
* TTL 4-pin interface
* 4M Flash memory
* microSD card reader for firmware upgrades
* Visible area: 57.6mm x 43.2mm
* Size: 85mm x 49.8mm
* Brightness Adjustable from 0 - 180 nit, in 1% steps
* Current consumption 64mA
* Compatible with Arduino, Raspberry Pi and many more
* can be fed directly from the microprocessor, no external
Power source is required.
Scope of delivery:
* Nextion display 2.8"
* Adapter cable (TTL)
* USB power adapter PCB
Left:
* Nextion wiki [1]
* Nextion User Manual (online, English) [2]
Left:
------
[1] http://wiki.iteadstudio.com/Nextion_HMI_Solution
[2]
http://support.iteadstudio.com/support/discussions/topics/1000065323
| Item number | 5998878 |
| Manufacturer | |
| Category | |
| Manufacturer no. | NX3224T028 |
| Release date | 11/22/2016 |
| Weight | 10 g |
