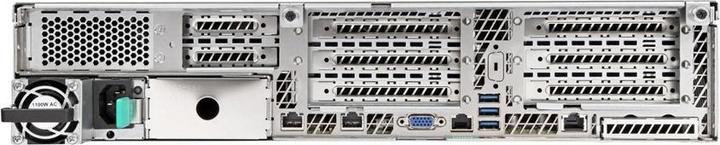

Intel R2308wttysr

Ratings
BrandMore from Intel
Currently out of stock
Free shipping starting at 50.–

Product details

The Intel R2308WTTYSR is a powerful server barebone designed for use in rack-mounted environments. With a 2U form factor, it offers a compact solution for businesses that require high computing power and flexibility. The server supports the Intel® C612 chipset architecture and is equipped with two LGA 2011-v3 processor sockets, accommodating a variety of Intel Xeon E5 v4 processors. This allows for a maximum RAM capacity of up to 1536 GB DDR4 SDRAM, making it ideal for memory-intensive applications. The R2308WTTYSR also provides extensive RAID options (0, 1, 10) and supports both SAS and SATA storage drive interfaces, ensuring high data availability and security. With a variety of network connections, including 10 Gigabit Ethernet, this server is well-equipped for modern network environments.

  • Maximum memory of 1536 GB DDR4 SDRAM
  • Supports up to 8 hot-swappable 3.5-inch hard drives
  • Two LGA 2011-v3 processor sockets for high computing power
  • RAID levels 0, 1, 10 for enhanced data security
  • Two RJ45 Ethernet ports for flexible network connections.

Key specifications

Number of CPU sockets
2 x
Socket
LGA 2011-v3
Processor family
Xeon E5 v4
Max. memory slots
24
Item number
5725081

General information

Manufacturer
Intel
Category
Server barebones
Manufacturer no.
R2308WTTYSR
Release date
7.4.2016

Hardware form factor

Design
Rack Server
Number of rack units
2 U

Motherboard properties

Manufacturer
Intel
Chipset
Intel C612
Number of CPU sockets
2 x
Socket
LGA 2011-v3
Processor family
Xeon E5 v4

Memory

Memory type
DDR4-RAM
Memory form factor
DIMM
Number of pins
288 x
Max. memory slots
24
Max. RAM
1536 GB
RAM speed
2400 MHz

Data storage controller

Possible raid configuration
0, 1, 10
Data storage controller
Intel C612

Hard drive slots

Max. number of hard disks
8
Form factor
3.5"
Interface
SAS, SATA

External interfaces

Exact USB ports
USB-A 3.2 Gen 1 (5x)
Data ports
PS/2 (1x)
Connectivity
Ethernet, LAN

Internal interfaces

Expansion slot
PCI Express x4 (1x), PCI Express x8 (7x)
PCI express version (max.)
3

Network

Network connections
RJ45 (2x)
Max. port speed
10 Mbit/s

Video connections

Video connections
D-Sub (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system

Mains supply properties

Number of power supply units
1 x
Power
1100 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
712 mm
Width
439 mm
Height
89 mm
