HPE DL360 Gen10 1x Gold 5118 2.3GHz 1x32GB

Intel Xeon Gold 5118, 32 GB, Rack Server
Delivered between Thu, 17.7. and Tue, 22.7.
free shipping

Product details

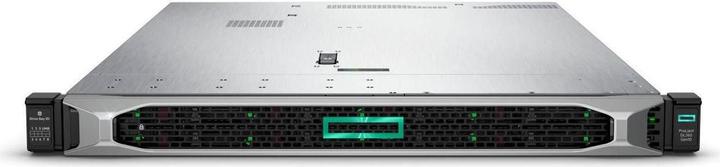

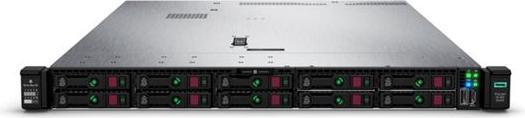

The HPE ProLiant DL360 Gen10 is a powerful rack server designed for demanding data center applications. Featuring an Intel Xeon Gold 5118 processor with a clock speed of 2.3 GHz and 32 GB of HPE DDR4 SmartMemory, this server is ideal for virtualization, databases, and high-performance computing (HPC). The architecture supports up to 12 NVDIMMs and 10 NVMe drives, providing high flexibility and performance for dynamic workloads. The DL360 Gen10 not only offers a compact form factor but also integrated security features such as Silicon Root of Trust and Run-Time Firmware Validation, ensuring the protection of sensitive data. The easy management and automation of server lifecycle tasks are supported by HPE OneView and HPE iLO 5, significantly simplifying deployment and maintenance. This server is thus a reliable solution for businesses that require a secure and powerful infrastructure.

  • Supports the Intel® Xeon® Processor Scalable family for enhanced performance and efficiency
  • Integrated security features such as Silicon Root of Trust and Secure Recovery
  • Flexible design to support dynamic workloads with hot-swapping functionality
  • Automation of server lifecycle management through HPE OneView and HPE iLO 5
  • Maximum memory capacity of up to 3 TB with HPE DDR4 SmartMemory.

Key specifications

Number of rack units
1 U
Processor family
Xeon Gold
Processor type
Intel Xeon Gold 5118
Max. number of hard disks
8
Number of processors
1 x
RAM
32 GB
Operating system
LinuxWindowsWindows Server 2012 R2
Item number
12010446

General information

Manufacturer
HPE
Category
Servers
Manufacturer no.
P06454-B21
Release date
1.5.2019

Hardware form factor

Design
Rack Server
Number of rack units
1 U

Processor

Processor family
Xeon Gold
Processor type
Intel Xeon Gold 5118
Number of processors
1 x
Clock frequency
2.67 GHz
Number of threads
24
Number of processor cores
12 -Core
Max. turbo clock rate
3.20 GHz
Max. TDP
105 W
L3 Cache
16.50 MB

Motherboard properties

Socket
Socket P
Chipset
Intel C621

Memory

Memory type
DDR4-RAM
Max. memory slots
24
Memory configuration
2 x 16GB
RAM
32 GB
Max. RAM
768 GB
RAM speed
2666 MHz
RAM error correction
ECC

Data storage controller

RAID configuration
0110550660
Possible raid configuration
0110550660
Mass storage controller type
RAID
Data storage controller
Intel C621

Hard drive slots

Max. number of hard disks
8
Storage capacity
22000 GB
Form factor
2.5"
Interface
SAS
Hard disk additional functions
Hot swapping

Internal interfaces

PCI express version (max.)
3

External interfaces

Connectivity
EthernetLAN

Network

Network connections
RJ45 (4x)
Ethernet controller
331i
Ethernet controller brand
HP
Max. port speed
1000 Mbit/s

Graphics card properties

Video memory type
GDDR4
Dedicated graphics memory
0.02 GB
Hardware interface
PCI Express 3.0

Video connections

Video connections
D-Sub (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
LinuxWindowsWindows Server 2012 R2
Processor design
64-bit

Mains supply properties

Number of power supply units
2 x
Power
800 W
input voltage
230 V
Max. number of power supply units
2

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
707 mm
Width
434.60 mm
Height
42.90 mm
Weight
13 kg
