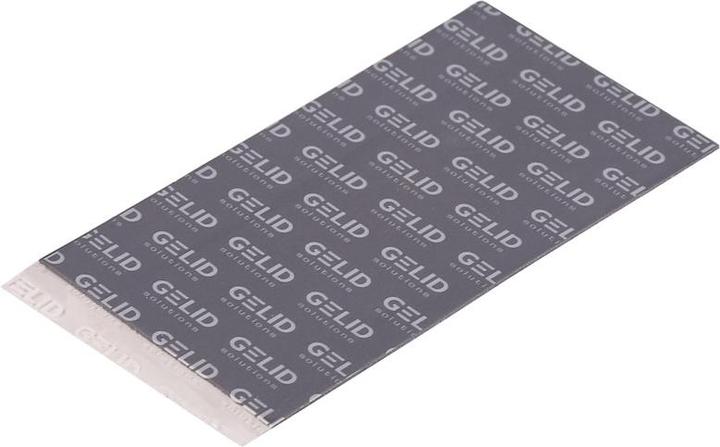

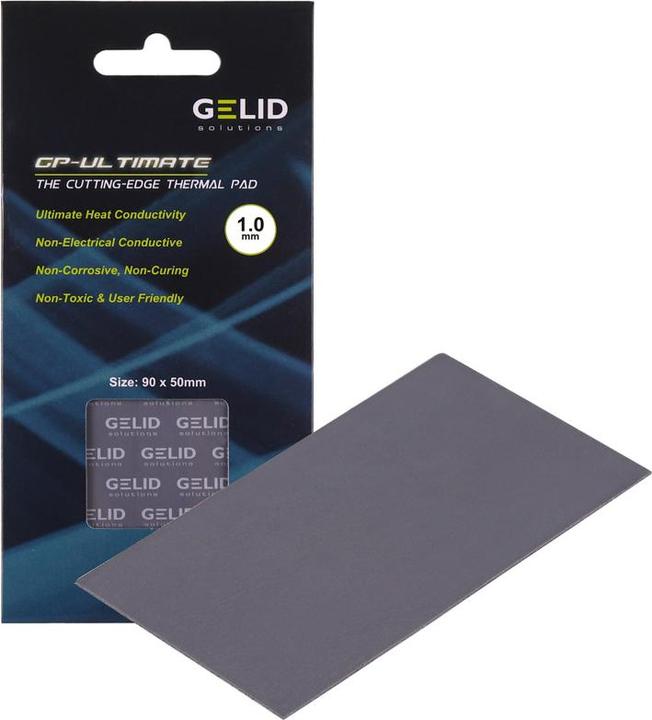

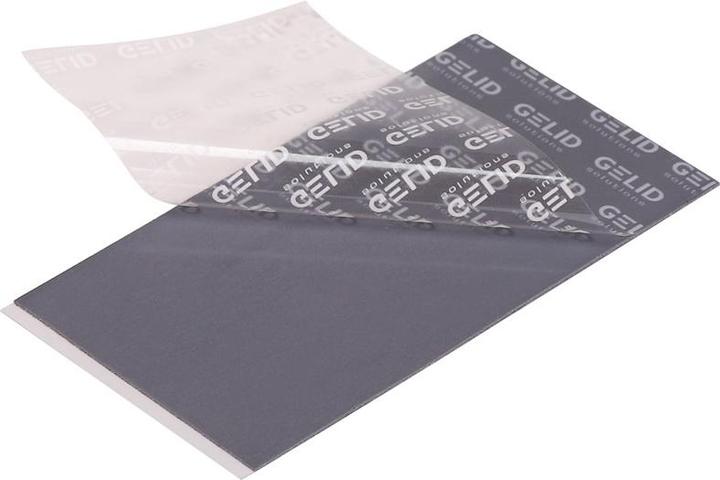

The GP-Ultimate is designed to provide perfect thermal contact to heatsinks when installed on PCBs with height differences and uneven surfaces, such as power MOSFETs, chipsets, analog ICs, microcontroller units, and other high-temperature SMD components. Thanks to its enhanced multilayer matrix, superior material composition, and ultimate thermal conductivity, the GP-Ultimate fills spaces properly and offers the best performance in its class.
The GP-Ultimate is non-electrically conductive, non-corrosive, non-curing, non-toxic, and supports an extended operating temperature range of -60°C to 220°C. It features easy application and has thermal pad dimensions of 90x50mm, making it suitable for large PCB surfaces of GPU cards, motherboards, add-on cards, and any other densely packed electronic device.
Length | 50 mm |
Width | 90 mm |
Thickness | 1 mm |
Density | 3.20 g/cm³ |
Shore hardness | Shore 00-60 |
Electrical conductivity | Non-conductive (0 S/m) |
Max. temperature | 220 °C |
Item number | 36161988 |
Manufacturer | Gelid |
Category | Thermal pads |
Manufacturer no. | TP-GP04-B |
Release date | 9.6.2023 |
Sales rank in Category Thermal pads | 31 of 213 |
Thermal paste type | Heat conducting pad |
Thermal conductivity | 15 W/m K |
Max. temperature | 220 °C |
Density | 3.20 g/cm³ |
Shore hardness | Shore 00-60 |
Electrical conductivity | Non-conductive (0 S/m) |
Items per sales unit | 1 x |
CO₂-Emission | |
Climate contribution |
Length | 50 mm |
Width | 90 mm |
Thickness | 1 mm |
Weight | 20 g |
