Flexa Secure screw connection

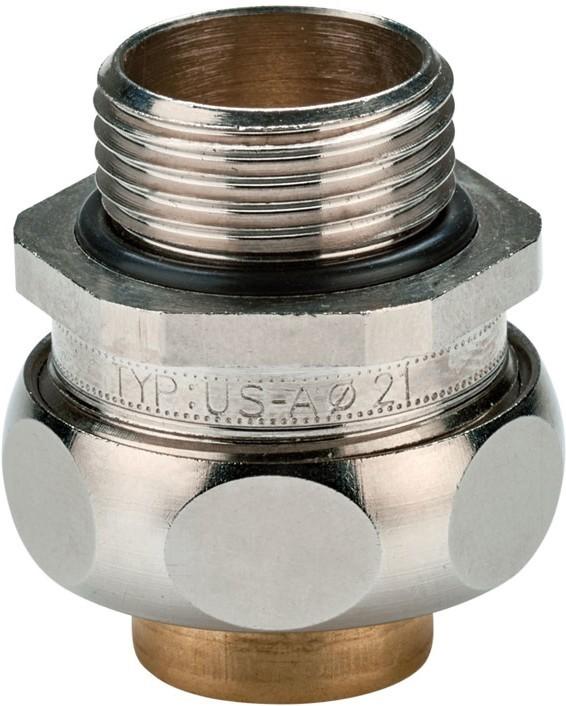

Flexa safety fitting US-M 5010.328.032 Manufacturer :Flexa Designation :safety fitting AD36/M32 Type :US-M 5010.328.032 Nominal diameter :36 mm Nominal size in inches :1 inch Protection class (IP) hose-dependent :0...65 Design :straight Rotatable thread :no Design :male thread Connection type of fitting to housing :thread Thread type :metric Thread connection size :M32 x 1.5 Thread turns per inch :1.5 One-piece :no Housing material :brass Surface protection :nickel-plated Smallest inner diameter of the hose :29 mm Largest outer diameter of the hose :36 mm Thread length :14 mm Total length :43 mm Total height :48 mm Perm. in combination with protective conduit acc. to DIN EN 61386-23 :yes Perm. in combination with protective conduit CSA :no Perm. in combination with protective conduit UL :no Perm. in combination with protective conduit FI :no Application temperature :-40..125 °C Number of entries :1 With earth connection :no Flexa safety fitting US-M 5010.328.032: more details Metal safety fitting straight US-M, IP 65 suitable for metal conduits SPR-PA / SPR-PU-AS / SPR-PU-F / SPR-PVC-AS / FLEXAgraff-PU-AS / FLEXAgraff-PU-F metric male thread, incl. internal grommet, sealing ring and O-ring. Inner grommet, sealing ring and O-ring, housing with hexagonal wrench face Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high dust and liquid protection / non-positive connection of hose and fitting / perfect earthing / covering of hose ends / vibration and tensile strength , EAN: 4025113145505.
