Flexa FLEX plastic quick connector

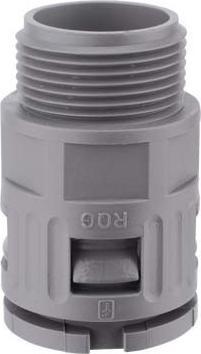

Flexa quick connector RQG1-M AD15,8/M20 gr Manufacturer :Flexa Designation :Quick connector IP66,straight Type :RQG1-M AD15,8/M20 gr Nominal diameter :15,8 mm Nominal size in inch :3/8 inch Protection class (IP) :IP66 Design :straight Rotatable thread :no Design :external thread Connection type :Thread type :metric Thread connection size :M20 x 1.5 Thread turns per inch :1.5 Thread material :Polyamide (PA) Thread length :13 mm Total length :39 mm Total height :25 mm Material :Polyamide (PA) Material Seal :without seal Smallest inner diameter of hose :12 mm Largest outer diameter of hose :15.8 mm Colour :grey Zul. in combination with protective hose CSA :no Approved in combination with protective hose UR :yes Approved in combination with protective hose acc. to DIN EN 61386-23 :yes Approved in combination with protective hose Lloyd\'s Register :yes Application temperature :-40..120 °C Approved in combination with protective hose VdS :-40..120 °C Approved in combination with protective hose Lloyd\'s Register :yes in combination with protective conduit VdTÜV/GGVSEB :no Flexa quick connector RQG1-M AD15,8/M20 gr: further details plastic quick connector straight RQG1-M, IP 66 one-piece, metric male thread, conical sealing, for ROHRflex corrugated hoses material: plastic (PA), colour: grey (also available in black) temperature range: -40°C ...+120°C Approvals: VDE tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / NFPA 130 - ASTM E 162-E 662 SMP 800-C / Lloyds Register of Shipping / Gost, Properties: resistant to oil and petrol / silicone-, cadmium- and halogen-free / largely acid- and solvent-resistant , EAN: 4025113174741.
