Flexa All-plastic corrugated hose

Flexa solid plastic corrugated hose FLEXAzip AD21.2, 10m

Manufacturer: Flexa
Designation: Solid plastic corrugated hose, black
Type: FLEXAzip AD21.2, 10m
Nominal diameter: 21.2 mm
Nominal size in inches: 1/2 inch
Outer diameter: 21.3 mm
Inner diameter: 16.5 mm
Material: Polyamide 6
Operating temperature: -40 to 100 °C
Protection class (IP): IP40
Fire protection according to UL 94: HB
Bending radius, static: 40 mm
Bending radius, dynamic: 120 mm
UV-resistant: Yes
Oil-resistant: Yes
Colour: Black
Sheathing material: Without sheathing
Flame-spreading: No
Bending behaviour: Flexible
Longitudinal slit: Yes
Sealable (two-part): Yes
Halogen-free: Yes
Approval according to DIN EN 61386-23: No
Approval according to UR: No
Approval according to CSA: No
Approval according to LUL/British Standard: No
Approval according to Lloyd's Register TA: No
Approval according to UTAC: No
Approval according to NF F 16-101: No
With pull wire: No
Highly slippery inner layer: No
Approval according to DIN 5510: No
Approval according to VdTÜV/GGVSEB: No

Flexa all-plastic corrugated hose FLEXAzip AD21.2, 10m: further details
All-plastic corrugated hose ROHRflex PA slit, HB (UL 94), IP 40
For retrofitting installations, corrugated inside and outside, narrow profile

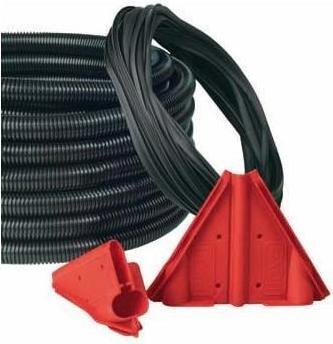

Contents: 10 metre corrugated hose slit, 10 metre sealing profile, 1 piece installation tool
Material: Plastic (PA), Colour: Black
Temperature range: -40 °C to +100 °C, up to 130 °C
Properties: Oil-resistant up to +80 °C, petrol-resistant, largely acid- and solvent-resistant, silicone-, cadmium-, halogen-free, self-extinguishing, flame-retardant, UV-resistant
Field of application: Retrofitting installations, mechanical engineering, plant engineering, equipment construction, automation, electrical systems
EAN: 4025113220356.
