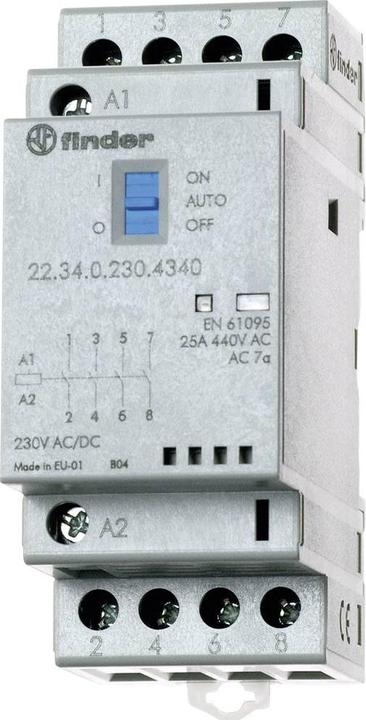

Finder Installation contactor 22 series, 25 A 22.34.0.230.4640 2 NO/2 NC contacts (30/110/220 V) 25/5/1 A

Installation contactor series 22, 25 A installation contactors according to DIN EN 61095: 2009. Designed for switching high inrush currents up to 120 A for 5 ms at the make contacts (lamp loads). Features contacts with double break and internal circuitry for AC/DC control (hum-free). It has reinforced insulation between the coil and contacts. An auxiliary switch with 1 NO + 1 NC or 2 NO contacts can be mounted on the side. Compatible with DIN EN 60715 TH35 rail.

Features include a mechanical indicator and an electrical indicator (LED) with an on/auto off switch.

Technical data:

• Drop-out time: 40 ms
• Response time: 18 ms
• Inrush current (5 ms): Max. 120 A
• Contact type: 2 NO/2 NC contacts
• Contact material: AgSnO2
• Lifetime (electrical): 30 x 10^3 operations
• Lifetime (mechanical): 2 x 10^6 operations
• Rated voltage: 230 V DC/AC
• Rated current (AC-7b, AC-7c): 10 A

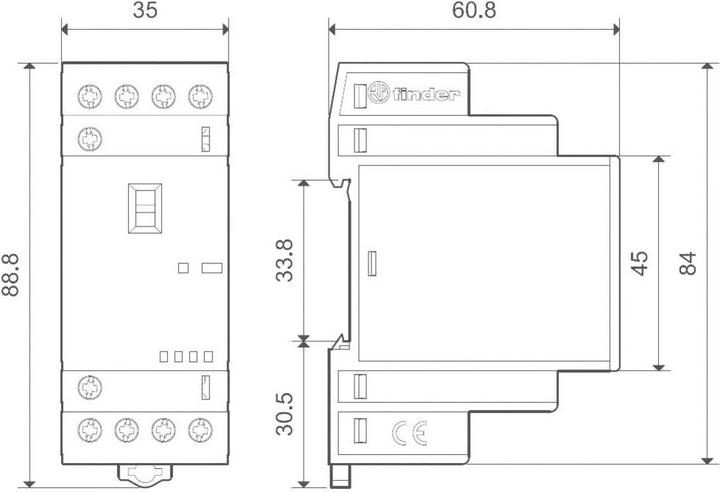

• Product dimension, width: 35 mm
• Product dimension, height: 60.8 mm
• Switching capacity (AC1/AC-7a): Max. 6250 VA / (AC15, 230 V/AC): 1800 VA
• Switching voltage: 250 V/AC / Max. 440.
