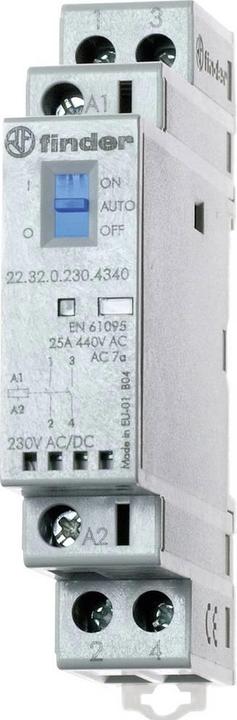

Finder Installation contactor 22 series, 25 A 22.32.0.012.4540 1 NO/1 NC contact (30/110/220 V) 25/5/1 A

Ratings
BrandMore from Finder
Delivered Thu, 24.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

Installation contactor series 22, 25 A installation contactors according to DIN EN 61095: 2009. For switching high inrush currents up to 120 A for 5 ms at the make contacts (lamp loads). Contacts with double break. Via internal circuitry for AC/DC control (hum-free). Reinforced insulation between coil and contacts. Auxiliary switch with 1 NO + 1 NC or 2 NO contacts can be mounted on the side. For DIN EN 60715 TH35 rail.

Features: mechanical indicator, electrical indicator (LED), on/auto off switch.

Technical data:

  • Drop-out time: 20 ms
  • Response time: 30 ms
  • Inrush current (5 ms): Max. 120 A
  • Contact type: 1 NO/1 NC
  • Contact material: AgSnO2
  • Lifetime (electrical): 30 x 10^3 operations
  • Lifetime (mechanical): 2 x 10^6 operations
  • Rated voltage: 12 V DC/AC
  • Rated current (AC-7b, AC-7c): 10 A
  • Product dimension, width: 17.5 mm
  • Product dimension, height: 60.8 mm
  • Switching capacity (AC1/AC-7a): Max. 6250 VA/(AC15, 230 V/AC) 1800 VA
  • Switching voltage: 250 V/AC/Max. 440.

Key specifications

input voltage
12 V
Scope of delivery
Auxiliary switch with 1 NO contact + 1 NC contact or 2 NO contacts can be mounted on the side, for DIN EN 60715 TH35 trunking rail, Installation contactors according to DIN EN 61095: 2009
Output voltage
250 V
Output current type
AC/DC
Electric current output
25 A
Relay type
Installation contactor
Item number
14177396

General information

Manufacturer
Finder
Category
Relays
Manufacturer no.
22.32.0.012.4540
Release date
11.11.2020
External links
Manufacturer's site (de)

Relay properties

Relay type
Installation contactor
input voltage
12 V
Output voltage
250 V
Electric current output
25 A
Output current type
AC/DC
Resistor
250000 Ω (ohm)
Switching function
Opener
Number of openers
1 x
Number of closers
1 x
Max. Switching capacity
6.25 kW
Manufacturer Type
22.32.0.012.4540

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
Auxiliary switch with 1 NO contact + 1 NC contact or 2 NO contacts can be mounted on the side, for DIN EN 60715 TH35 trunking rail, Installation contactors according to DIN EN 61095: 2009

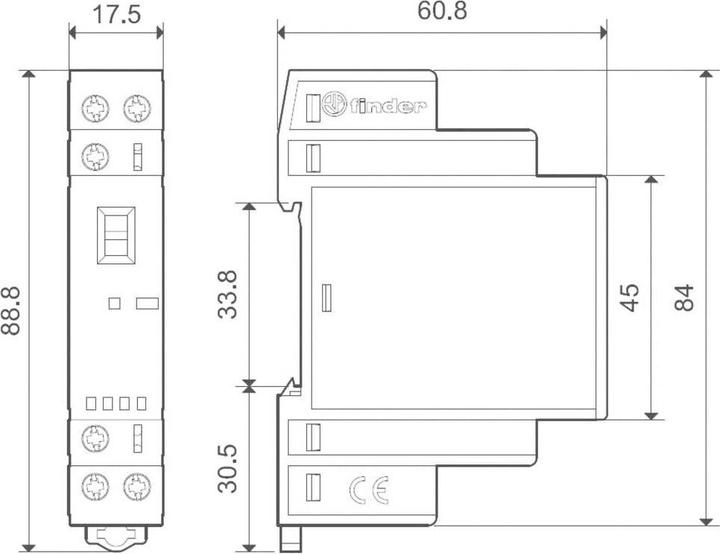

Product dimensions

Length
84 mm
Width
17.50 mm
Height
84 mm
